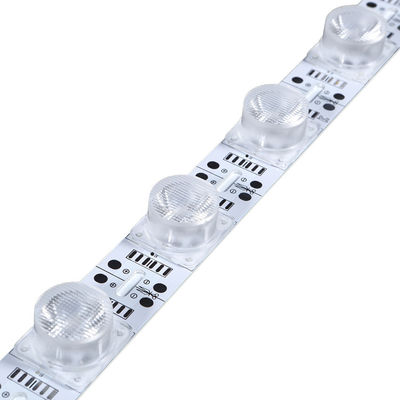

SMD 3030 Edge Lit LED Bar High Power Strip Light 12V 24V For SEG Fabric Frames Lightbox
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS/FCC |
| Model Number: | ADS-N3030-18 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Packaging Details: | 2pcs/Package |
| Delivery Time: | 7days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | 3030 18LEDs/m IP20 Edge Lit LED Bar | Model: | ADS-N3030-18 |
|---|---|---|---|
| Voltage: | DC12V/24V | LEDs Per Metre: | 18 |
| Watts Per Metre: | 28.8W/m Or Custom | Colour Temperature: | 3000K/4000K/6500K |
| IP Rating: | IP20 | Beam Angle: | 15x45° |
| Length: | 990mm | Warranty: | 5 Years |
| High Light: | SMD 3030 Edge Lit LED Bar,12V Edge Lit LED Bar,24V High Power Strip Light |
||
Product Description
Edge Lit LED Bar High Power Strip Light SMD 3030 12V 24V for SEG Fabric Frames Lightbox
Benefits of Light Bars for LED Fabric Frame
1. Best optical lens for LED lights bars
We are proud of LED lights bars optical lens, it emits the best lighting in fabric frame light boxes.
2. IP20 & IP67
IP20 edge LED light bar used for indoor fabric light box
IP67 edge LED light bar used for double sided outdoor LED sign
|
|
| IP20 edge LED light bar | IP67 edge LED light bar |
3. Easy install in sign light box
IP20 type: Male & female quick connectors easy plug & play in fabric pop up display. You can install with back adhesive to the aluminum frames of light box signage.
IP67 type: You can connect LED power supply with DC quick connectors, fix rigid LED light bar with mouting clips to the frames of double sided lighted sign.
4. Epistar chip
Our bar LED lights powered by Epistar SMD 3030, all approved UL, CE, ROHS, FCC, KC certificates, guarantee 5 years warranty.
5. 1.6mm Aluminum PCB Board
We use 1.6mm thick aluminum board for led lights bar , to make sure good quality products and better heat sinking.
6. High Lumen LED Light Bar
Standard 18 led light bar with 2160lm, super bright in double sided led sign lights.
Light Bars for LED Fabric Frame Manufacturer
We are proud of OEM & ODM services for best LED light bar since 2016, the first factory to develop LED light bars in China.
Top distributors & LED light boxes manufacturers in Europe & USA speak highly our rigid LED bar.
We always stock LED box lighting materials, standard products can ship out in 7days.
What is Light Bars for LED Fabric Frame?
Light bars for LED fabric frame also be defined light box LED module, light boxes solutions or LED strip for frameless light boxes.
Various LED light bars available.
Different beam angles: 15x45°, 10x30°, 10x60° LED light bars for LED fabric frame
Different LEDs: SMD 3030, SMD 3535, SMD 1818 LED light bars for fabric frame light box
Different sizes: 1m, 0.5m, 0.3m, 0.4m etc
Different colors: Warm white, Natural white, White, Cold white, RGB, RGBWW, RGBW LED rigid light bar
Different voltage: 12v led light bar and 24v led light bar optional
Different waterproof grade: IP20 IP67 optional
LED light bars create even illumination in advertising sign boxes, saving labor cost in installation for LED light boxes.
Light Bars for LED Fabric Frame Specification:
| Model | ADS-N3030-18 |
| LED type | Epistar chip SMD3030 LED |
| LEDs per metre | 18LEDs |
| Operating voltage | DC12V/24V |
| Watts per metre | 28.8W |
| Colour temperature | 3000K/4000K//6500K |
| IP rating | IP20 |
| Length | 990mm |
| Driven Mode | Constant Current |
| Beam angle | 15x45° |
| PCB Width | 25mm |
| Warranty | 5 Years |
| Certifications | UL/CE/RoHS/FCC |
| Dimmable | 0-100% dimmable by LED strip light dimmer |
Light Bars for LED Fabric Frame Application:
• Edge Lit LED Light Box • Exhibition Booth Stand
• Fabric Face Light Box • Fabric Light Box
• Frameless Fabric Light Box • LED Fabric Light Box
• LED Light Box Display • Light Box Signage
• Lighting Fabric • SEG Light Box
• SEG Lightbox Frames • SEG Systems
• Trade Show Displays • Display light boxes
Light Bars for LED Fabric Frame FAQ
Q: Which lighting project use your LED light bars?
Our LED light bars used in Olympic Games light boxes, Coca Cola poster box, Metro LED light frames, Airport LED fabric frame, etc.
Q: How to install LED light bars in double-sided fabric frame displays?
Step 1 : Caculate LED light bars quantity and how much LED power supply
Step 2: Clean the surface of aluminum frame light box
Step 3: Install LED light bars to two sides or four sides of lightbox
Step 4: Connect LED power supply with LED bar module
Q: How many piece (1m LED bar) can connect in parallel?
You can connect maximum 3pcs LED light bar.
Q: Can I cut LED light bars?
Yes, you can cut LED light bars at the soldering point.
DC12V edge lit LED bar can be cut each 1LED
DC24V edge lit LED bar can be cut each 2LEDs
