LED Light Dimmer Module High Power SEG Fabric Frame Lightbox Lighting IP67 12V 3535 SMD

Place of Origin China
Brand Name ADLED
Certification UL/CE/RoHS
Model Number ADM-4636-3535-1
Minimum Order Quantity 1000pcs
Delivery Time 7days
Payment Terms T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability 100000pcs
Product Details

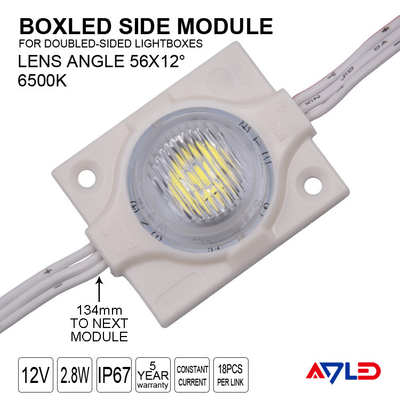

Name 3535 Edge Lit LED Module Light Model ADM-4636-3535-1
Voltage DC12V LED Type SMD 3535 LED
Watts Per Metre 2.8W Colour Temperature 3000K/6500K
IP Rating IP67 Driven Mode Constant Current
Beam Angle 12x56° Warranty 5 Years
High Light

IP67 Light Dimmer Module

,

3535 Light Dimmer Module

,

12V LED Module High Power

Leave a Message
Product Description

LED Light Modules High Power SEG Fabric Frame Lightbox Lighting IP67 12V 3535 SMD



Benefits of LED Module Lights


1. Edge Lit LED Module

Our edge lit led module series powered by good quality led lamps, guarantee 5 years warranty.



2. Side Emitting Lighting

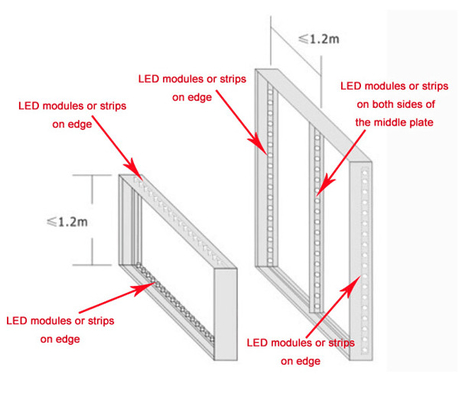

LED lamp module emit 12*56 degree, 3pcs per group, 18pcs per string. Edge Lighting suitable for single and double sided lightboxes.



3. High Lumen

Each 2.8W led module lumen up to 230lm, ideal for double sided illuminated sign.



4. UL, CE, RoHS certified

We always make 1.5w, 2.8w Edge Lit LED Module, all our led modules approved UL, CE, RoHS certification.



LED Light Dimmer Module High Power SEG Fabric Frame Lightbox Lighting IP67 12V 3535 SMD 0 LED Light Dimmer Module High Power SEG Fabric Frame Lightbox Lighting IP67 12V 3535 SMD 1 LED Light Dimmer Module High Power SEG Fabric Frame Lightbox Lighting IP67 12V 3535 SMD 2

ADM-3229-3030-1

Power: 1.5W

ADM-4636-3030-1

Power: 1.5W

ADM-4636-3535-1

Power: 2.8W



LED Module Lights Manufacturer

ADLED focus on premium modulo de led manufacturer in China, served 106 countries up to now.



As a professional one stop solutions provider of led illuminated signage, Adled also provide LED Power supply for our partners.



Waterproof led light modules is a good light source for indoor & outdoor led signage.



LED Light Dimmer Module High Power SEG Fabric Frame Lightbox Lighting IP67 12V 3535 SMD 3



What is LED Module Lights?

LED Module Lights is simply encapsulate diodes together, and make it waterproof, like injection or ultrasonic process. It is best lighting solution for led channel letter signs or light boxes.



Various led sign lighting modules available.
Different Series: Samsung LED module, Osram LED module, Mini LED module, Bright LED module, High power LED module, RGB LED module, Edge lit LED module.
Different Brand chips: Philips, Samsung, Osram, Sanan
Different LEDs: 1led, 2leds, 3leds, 4leds
Different Voltage: dc led module, AC LED module
Different colors: Warm white, Natural White, White, Cool White, Red, Green, Blue, Yellow, RGB LED Module



LED Module Lights Specification:

Model ADM-4636-3535-1
LED type SMD 3535 LED
LED Quantity 1LED
Operating voltage DC12V
Power 2.8W
Colour temperature 3000K/6500K
IP rating IP67
Beam angle 12x56°
Warranty 5 Years
Driven Mode Constant Current
Certifications UL/CE/RoHS
Size 46*36*15mm
Dimmable 0-100% dimmable by LED module light dimmer



LED Light Dimmer Module High Power SEG Fabric Frame Lightbox Lighting IP67 12V 3535 SMD 4



LED Light Dimmer Module High Power SEG Fabric Frame Lightbox Lighting IP67 12V 3535 SMD 5


LED Module Lights Application:

• Fabric Face Light Box
• Fabric Light Box Outdoor
• LED Fabric Light Box
• LED Light Box Frame
• Lighting Fabric
• SEG Lightbox
• SEG Systems



LED Light Dimmer Module High Power SEG Fabric Frame Lightbox Lighting IP67 12V 3535 SMD 6


LED Module Lights FAQ
Q: Can I get free samples of LED module?
Yes, usually we can provide free samples for you to check quality. You can mix all LED modules series.



Q: What is delivery time for LED modules?
OSRAM LED module lights is our top selling series, 3days for samples, 15days for 50000pcs, 30days for 300000pcs.



Q: Is OSRAM LED module lights price expensive?
We are LED module factory, OSRAM LED module series is relatively cheap.



Q: Do you provide ODM ?
Yes, our strong R&D team successfully develop and ODM
LED light module over 30 types.
