Automobile RGB W LED Strip Lights DC24V 96LEDs/M
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS |
| Model Number: | ADS-Y5050-96RGB+W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Packaging Details: | 5m(16.4ft) Per Roll |
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | RGB+W 5050 96LEDs/m Color Changing LED Tape Light | Model: | ADS-Y5050-96RGB+W |
|---|---|---|---|
| Voltage: | DC24V | LEDs Per Metre: | 96 |
| Watts Per Metre: | 23W | Colour: | RGB+W |
| IP Rating: | IP20/IP65/IP67/IP68 | Beam Angle: | 120° |
| Warranty: | 3 Years | PCB Width: | 12mm |
| Highlight: | 12mm RGB W LED Strip,DC24V RGB W LED Strip,23W Automobile LED Strip Lights |
||
Product Description

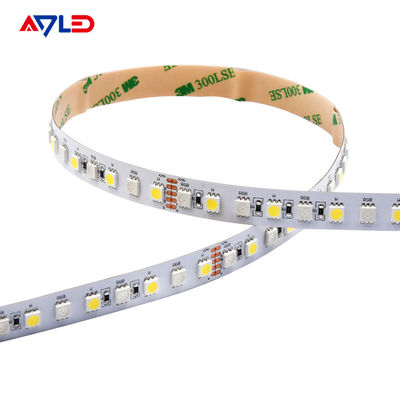

Automobile RGB W LED Strip Lights DC24V 96LEDs/M
Benefits of RGB White LED Strip
1. Color Changing RGBW LED Strip Addressable
RGB and white LED strip brings multi colors, you can select various colors, a good LED strip lights for game room, bar, hotel, etc.
2. Good Quality LED Strip Light Smart
All our 24v addressable RGBW LED strip guarantee aging for 8 hours before shipment, qualified for UL, CUL, CE, RoHS standard.Its life span up to 30000h.
3. Brightest RGBW LED Strip
RGB and white LED strip is combined with one RGB and one white LED lamps placed in sequence.
4. Different Types of Smart LED Strips
A lot of different types of RGB LED strips available, RGBWW, RGBW, RGB, RGB+W, RGB CCT LED strip for your choice.
12V/24V - 10mm PCB width - SMD 5050 30LEDs/m RGB LED strip
12V/24V - 10mm PCB width - SMD 5050 60LEDs/m RGB LED strip
24V - 12mm PCB width - SMD 5050 96LEDs/m RGB LED strip
24V - 20mm PCB width - SMD 5050 120LEDs/m Double Row RGB LED strip
24V - 12mm PCB width - SMD 5050 60LEDs/m RGB + W LED strip
24V - 12mm PCB width - SMD 5050 96LEDs/m RGB + W LED strip
12V/24V - 12mm PCB width - SMD 5050 60LEDs/m RGBW LED strip
24V - 16mm PCB width - SMD 5050 60LEDs/m RGB CCT LED strip
LED Color Changing Strip Light Manufacturer
As a reliable smart LED lightstrip manufacturers in china, we provide different series, like SMD 2835, SMD 3535, SMD 5050 LED RGB strip lighting.
We use 2oz PCB double layer for addressable LED strip warm white, it can make sure the mix colors more even on LED strip lights and guarantee best RGB lighting strips.
Incredibly bright RGB LED strip white color will attract people's eyes catching in one second. Any 12v or 24v smart lighting strips are easy to install in surface of LED aluminum profiles.
What is High CRI RGB and White LED Strip Light?
RGB and white LED strip light also known as dimmable RGB LED strip lights, 5 pin RGB LED strip, RGB WW CW LED strip, addressable white LED strip.
It is a smart LED strips lights, which combines two types LED strip. It contains strip LED lights color changing and high cri LED strip white.
RGB LED Strip Specifications:
| Model | ADS-Y5050-96RGB+W |
| LED type | SMD 5050 LED |
| LEDs per metre | 96 |
| Operating voltage | DC24V |
| Watts per metre | 23W |
| Colour | RGB+W |
| IP rating | P20/IP65/IP67/IP68 |
| PCB width | 12mm |
| Cut points | 125mm(4.92'') for 24V |
| Beam angle | 120° |
| Warranty | 3 Years |
| Certifications | UL/CE/RoHS |
| Package | 5m(16.4ft) per roll |
| Color changeable |
Color jumping or gradient controlled by LED strip controller |
RGB LED Strip Application:
• Decorative Lighting • Cove Lighting
• Bike Design Lighting • Bedroom Lighting
• Inspection Room Lighting • Party Lighting
• Commercial Lighting • Hotel Lobby Lighting
• Staircase Lighting • Stage Lighting
• Shower Lighting • Wall Lighting
• Living Room Lighting • Under Cabinet Task
• Shelf Lighting • Boat Lighting
• Under Eave • Parking Lighting
RGB LED Strip FAQ:
Q: How to connect RGB LED strip?
Step 1: Prepare a RGB LED strip connector 4 pin
Step 2: Cutting LED strip lights at soldering point
Step 3: Put LED strip into connector, make sure "+" of LED strip connect to "+"
Step 4: Cover the connector firmly
Step 5: Connect RGB LED strip lights to power supply
Q: What RGB LED strip connector you have?
Strip to strip, strip to controller, strip 4pin male to 4pin female connector
LED strip connector 4 pin
RGB LED strip 90 degree connector
4 pin LED strip connector with cable
T shape 4 pin RGB LED strip connector
4 pin LED strip light wire connectors
Q: How to connect RGB LED strip to power supply?
Step 1: Prepare LED accessory, such as LED strip light controller, LED power supply
Step 2: Connect 5050 LED RGB strip to LED tape controller
Step 3: If you use 12v RGB LED strip, link to a 12v LED strip light driver
