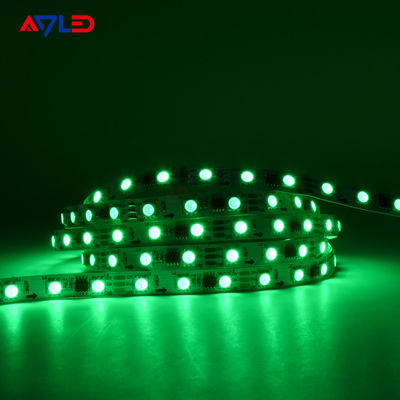

5050 RGB LED Strip WS2811 12V Flexible Cuttable LED Tape

5050 RGB LED Strip WS2811 12V Flexible Cuttable LED Tape

Product Details:

Place of Origin: China
Brand Name: ADLED
Certification: UL/CE/RoHS
Model Number: ADS-Y5050-60-WS2811

Payment & Shipping Terms:

Minimum Order Quantity: 100M
Packaging Details: 5m(16.4ft) Per Roll
Delivery Time: 7days
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 100000M
Get Best Price Contact Now

Detail Information

Name: RGB 5050 60LEDs/m Digital LED Tape Light Model: ADS-Y5050-60-WS2811
Voltage: DC12V/24V LEDs Per Metre: 60
Watts Per Metre: 14.4W Colour: Dream Color
IP Rating: IP20/IP65/IP67/IP68 Beam Angle: 120°
Warranty: 3 Years PCB Width: 10mm
High Light:

5050 RGB LED Strip

,

WS2811 RGB LED Strip

,

12V Flexible Cuttable LED Tape

Product Description

5050 RGB LED Strip WS2811 12V Flexible Cuttable LED Tape


Benefits of Dream Light LED Strip

1. Color Changing Dream Light LED Strips
RGB LED Pixel Strip brings multi colors, you can select various colors, a good sequential RGB LED strip for game room, bar, hotel, etc.

5050 RGB LED Strip WS2811 12V Flexible Cuttable LED Tape 0


2. Good Quality RGB LED Strip
All our programmable RGB LED light strip guarantee aging for 8 hours before shipment, qualified for UL, CUL, CE, RoHS standard.Its life span up to 30000h.


3. Programmable LED Strip Light
You can DIY colors by mixing different colors and keep it record for next time use. Easy to set up 12v individually addressable LED strip by a mobile app to control light and voice.



4. Different Types of RGB LED Strips
A lot of different types of RGB LED strips available, RGBWW, RGBW, RGB, RGB+W, RGB CCT LED strip for your choice.



5050 RGB LED Strip WS2811 12V Flexible Cuttable LED Tape 1



12V/24V - 10mm PCB width - SMD 5050 30LEDs/m RGB LED strip



5050 RGB LED Strip WS2811 12V Flexible Cuttable LED Tape 2



12V/24V - 10mm PCB width - SMD 5050 60LEDs/m RGB LED strip



5050 RGB LED Strip WS2811 12V Flexible Cuttable LED Tape 3



24V - 12mm PCB width - SMD 5050 96LEDs/m RGB LED strip



5050 RGB LED Strip WS2811 12V Flexible Cuttable LED Tape 4



24V - 20mm PCB width - SMD 5050 120LEDs/m Double Row RGB LED strip



5050 RGB LED Strip WS2811 12V Flexible Cuttable LED Tape 5



24V - 12mm PCB width - SMD 5050 60LEDs/m RGB + W LED strip



5050 RGB LED Strip WS2811 12V Flexible Cuttable LED Tape 6



24V - 12mm PCB width - SMD 5050 96LEDs/m RGB + W LED strip



5050 RGB LED Strip WS2811 12V Flexible Cuttable LED Tape 7



12V/24V - 12mm PCB width - SMD 5050 60LEDs/m RGBW LED strip



5050 RGB LED Strip WS2811 12V Flexible Cuttable LED Tape 8



24V - 16mm PCB width - SMD 5050 60LEDs/m RGB CCT LED strip



RGB LED Strip Manufacturer

As a reliable led strip light manufacturers in china, we provide different series, like SMD 2835, SMD 3535, SMD 5050 programmable LED light strips.



We use 2oz PCB double layer for RGB programmable LED strip, it can make sure the mix colors more even on LED strip lights and guarantee high quality LED strip lights programmable.



Incredibly bright 12v digital LED strip will attract people's eyes catching in one second. Any 12v or 24v dream color LED light strip are easy to install in surface of LED aluminum profiles.

5050 RGB LED Strip WS2811 12V Flexible Cuttable LED Tape 9



What is Dream Light LED Strip?

Dream LED strip also known as LED pixel strip light, scrolling LED strip, running LED strip, LED strip light sequential, crazy LED light strips, digital strip lights, full color LED strip, chasing RGB LED strip



Dream LED light strips lash light changes along with voice or music sync for a more colorful life. You can also set up the time, when the time is up, magic dream color LED strip will begin to work.



RGB LED Strip Specifications:

Model ADS-Y5050-60-WS2811
LED type SMD 5050 RGB LED
LEDs per metre 60
Operating voltage DC12V/24V
Watts per metre 14.4W
Colour Dreamcolor
IP rating P20/IP65/IP67/IP68
PCB width 10mm
Cut points 50mm(1.97'') for 12V; 100mm(3.94'') for 24V
Beam angle 120°
Warranty 3 Years
Certifications UL/CE/RoHS
Package 5m(16.4ft) per roll
Color changeable

Color jumping or gradient controlled by LED strip controller



5050 RGB LED Strip WS2811 12V Flexible Cuttable LED Tape 10


RGB LED Strip Application:

Above Cabinet Lighting                                        Closets Lighting
Skateboards Lighting                                            Sides of Buildings Lighting
False Ceiling Lighting                                           Commercial Lighting
Shelf Lighting                                                        Film Lighting
Under Kickboards                                                 Ambient Lighting
Above Fish Tanks Lighting                                    Deck Lighting
Billboards                                                              Under Cabinet Kitchen
Home Decoration Lighting                                    Driveway Lighting
Photography Lighting                                            Kitchen Cabinet Lighting



5050 RGB LED Strip WS2811 12V Flexible Cuttable LED Tape 11

RGB LED Strip FAQ:

Q: How to connect RGB LED strip?
Step 1: Prepare a RGB LED strip connector 4 pin
Step 2: Cutting LED strip lights at soldering point
Step 3: Put LED strip into connector, make sure "+" of LED strip connect to "+"
Step 4: Cover the connector firmly
Step 5: Connect RGB LED strip lights to power supply



Q: What RGB LED strip connector you have?
Strip to strip, strip to controller, strip 4pin male to 4pin female connector
LED strip connector 4 pin
RGB LED strip 90 degree connector
4 pin LED strip connector with cable
T shape 4 pin RGB LED strip connector
4 pin LED strip light wire connectors



Q: How to connect RGB LED strip to power supply?
Step 1: Prepare LED accessory, such as LED strip light controller, LED power supply
Step 2: Connect 5050 LED RGB strip to LED tape controller
Step 3: If you use 12v RGB LED strip, link to a 12v LED strip light driver
