Injection 2835 LED Module 12V 24V 4 Light Sign Lens 3W SMD IP67 Waterproof
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS |
| Model Number: | ADM-5246-2835-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000pcs |
|
Detail Information |
|||
| Name: | 4LEDs 2835 LED Module Light | Model: | ADM-5246-2835-4 |
|---|---|---|---|
| Voltage: | DC12V/24V | LED Quantity: | 4LEDs |
| Watts Per Metre: | 3W | Colour Temperature: | 3000K/4000K/6500K |
| IP Rating: | IP67 | Driven Mode: | Constant Current |
| Beam Angle: | 180° | Warranty: | 5 Years |
| High Light: | 2835 LED Module 12V,3W 2835 LED Module,4000K Injection LED Module |
||
Product Description
2835 LED Modules 12V 24V 4 Light Sign Lens 3W Modulo de LED SMD IP67 Waterproof Injection LED Module
Benefits of LED Module Lights
1. LED
Our super bright LED module series powered by brand LEDs, which helps for durable long life span.
2. 180° view angle
modular LED light emit 180 degree, more uniform lighting in LED signage board.
3. Unique lens
Our reimagined LED prism lens of LED module 24v with a wider light spot, P:D=3.5:1, normal bat-wing lens in market is 2:1.
| |
|
| Normal bat-wing lens in market | ADLED reimagined LED prism leds technology |
|
size: Φ12.1*H4.5mm P:D=2:1 |
size: Φ15.23*H5.55mm wide light spot P:D=3.5:1 |
4. High Power LED Module
We make 1w, 2w, 2.5w, 3w brightest LED module as standard, high power 4 LED module always has high brightness, nice choice for front lit channel letter sign and light box sign.
|
|
|
|
|
ADM-3621-2835-1 Power: 1W |
ADM-6221-2835-2 Power: 2W |
ADM-8821-2835-3 Power: 2.5W |
ADM-5246-2835-4 Power: 3W |
LED Module Lights Manufacturer
ADLED focus on premium LED module distributor in China, served 106 countries up to now.
As a professional one stop solutionsprovider of lighted channel letter signs, Adled also provide LED Power supply for our partners.
Square LED module is a good light source for indoor & outdoor led signage.
What is LED Module Lights?

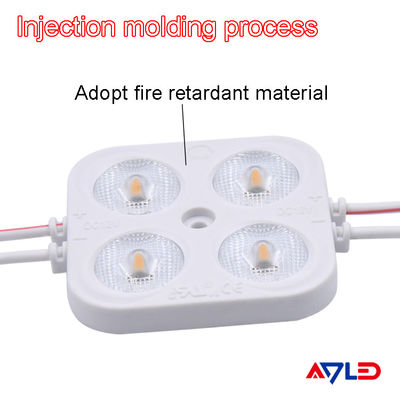

LED modul is simply encapsulate diodes together, and make it waterproof, like injection or ultrasonic process. It is best lighting solution for commercial channel letter signs or LED light boxes.
Various dimmable LED module available.
Different Series: Samsung LED module, LED module, Mini LED module, Bright LED module, High power LED module, RGB LED module, Edge lit LED module, High Efficiency LED Module.
Different Brand chips: Samsung, Sanan
Different LEDs: 1led, 2leds, 3leds, 4leds
Different Voltage: 12v LED module, 24v LED module, AC LED module
Different colors: Warm white, Natural White, White, Cool White, Red, Green, Blue, Yellow, RGB
LED Module Lights Specification:
| Model | ADM-5246-2835-4 |
| LED type | LED 2835 SMD |
| LED Quantity | 4LEDs |
| Operating voltage | DC12V/24V |
| Power | 3W |
| Colour temperature | 3000K/4000K/6500K |
| IP rating | IP67 |
| Beam angle | 180° |
| Warranty | 5 Years |
| Driven Mode | Constant Current |
| Certifications | UL/CE/RoHS |
| Size | 52*46*8.1mm |
| Dimmable | 0-100% dimmable by LED strip light dimmer |
LED Module Lights Application:
• Channel Letters
• LED Lighting Box
• Building External Wall Landscape
• LED Luminous Letter
• Airport AD Lighting Boxes
• Landscape Layout
• 3D Light Letter
• LED Outdoor Advertising Sign
• Stage Decoration
LED Module Lights FAQ
Q: Can I get free samples of LED module lights?
Yes, usually we can provide free samples for you to check quality. You can mix all LED modules series.
Q: What is delivery time for LED light modules?
LED module lights is our top selling series, 3days for samples, 15days for 50000pcs, 30days for 300000pcs.
Q: Is LED module price expensive?
We are LED module factory, LED module series is relatively cheap.
Q: Do you provide ODM ?
Yes, our strong R&D team successfully develop and ODM smd LED module over 30 types.
