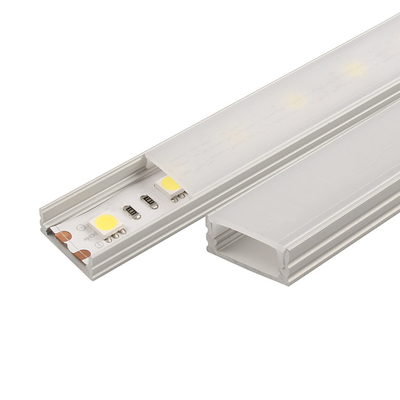

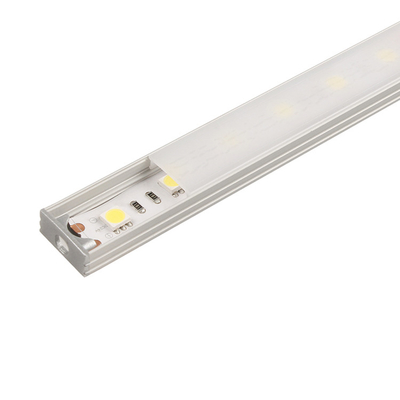

led light strip channel diffuser 1706 with profile light fitting
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | CE/RoHS |
| Model Number: | ADP-1706 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | Surface Mount Aluminum Profiles | Material: | 6063-T5 Aluminum Alloy + PC |
|---|---|---|---|
| PC Cover Material: | Clear/ Diffuser/Opal/Black For Options | Accessories: | End Caps + Mounting Clip |
| Available Lengths: | 1m, 2m, 3m Or Customized | LED: | SMD2110/2014/2216/2835/3014/3528 For Options |
Product Description
led light strip channel diffuser 1706 with profile light fitting
Dimension(mm):
LED Strip Profile Specifications:
| Name | ADP-1706 |
| PC Cover | Clear, Diffuser, Opal, Black |
| Dimension | 17X6mm |
| PCB Width | 12mm |
| LED QTY | 120LED/m or above |
| Suitable LED | 2110/2014/2216/2835/3014/3528 |
| Installation method | Embedded installation, Ceiling mounted installation. |
PC Cover:

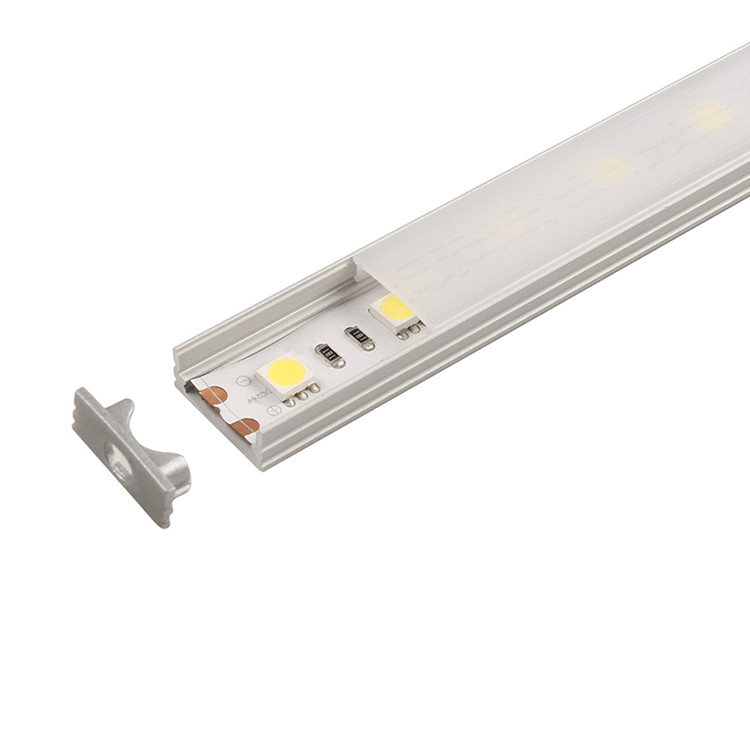

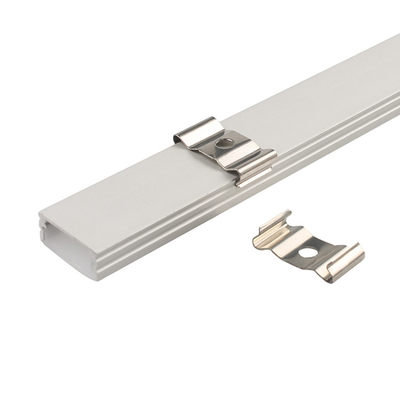

LED Strip Profile Accessories:
|
|
|
| End cap with hole | End cap without hole | Mounting clip |
Surface Mounted LED Aluminum Profile:
Different types of LED strip diffuser
Aluminum Channels also called LED Profiles, LED Extrusions, LED Housing, LED Strip Channels, Aluminium Profile LED, LED Aluminum Channels or LED Aluminum Profiles. Solution for LED Strip Lighting.
Adled is a professional LED Strip light manufacturer, we provide full range of LED strip lights aluminum profile.
• Surface Mount Aluminum Profiles
• Corner Mount Aluminum Profiles
• Recess Mount Aluminum Profiles
• Trimless Recess Mount Aluminum Profiles
• Aluminum Profiles for High-Output Lighting
• Pendant Mount Aluminum Profiles
Diffused aluminum profiles, commonly used in lighting applications, offer several advantages. Here are some key benefits:
Uniform Light Distribution: Diffused aluminum profiles are designed to provide uniform light distribution by diffusing the light emitted from LED strips. The diffuser material, typically made of high-quality polycarbonate or acrylic, helps to spread the light evenly, reducing hot spots and creating a soft, glare-free illumination.
Enhanced Visual Comfort: The diffusing properties of aluminum profiles help to improve visual comfort by reducing harsh glare and eye strain. The diffused light creates a more pleasant and comfortable lighting environment, making it suitable for spaces where people spend extended periods, such as offices, retail stores, and residential areas.
Protection for LEDs: The diffuser acts as a protective shield for the LED strips, safeguarding them against dust, moisture, and physical damage. It helps to extend the lifespan of the LEDs by minimizing direct exposure to external elements.
Design Flexibility: Diffused aluminum profiles come in various shapes, sizes, and designs, providing design flexibility for different lighting applications. They can be recessed, surface-mounted, or suspended, allowing for seamless integration into architectural elements, furniture, or fixtures.
Uniform Light Distribution: Diffused aluminum profiles are designed to provide uniform light distribution by diffusing the light emitted from LED strips. The diffuser material, typically made of high-quality polycarbonate or acrylic, helps to spread the light evenly, reducing hot spots and creating a soft, glare-free illumination.
Enhanced Visual Comfort: The diffusing properties of aluminum profiles help to improve visual comfort by reducing harsh glare and eye strain. The diffused light creates a more pleasant and comfortable lighting environment, making it suitable for spaces where people spend extended periods, such as offices, retail stores, and residential areas.
Protection for LEDs: The diffuser acts as a protective shield for the LED strips, safeguarding them against dust, moisture, and physical damage. It helps
Why choose LED light strip diffuser?
You can see clearly from the picture, LED strip with diffuser provides spotless lighting, it looks more softer and comforable than spot lighting LED strip lights without diffuser cover. LED strip channel with diffuser is important in lighting, it can protect your eyes. Also, LED aluminum strip can installed flatly, offer more beautiful lights in even illumination.
