12mm Led Profile Recessed Channel 1612B Aluminum Strip Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | CE/RoHS |
| Model Number: | ADP-1612B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | 12mm Led Profile Recessed Channel 1612B Aluminum Strip Lights | Material: | 6063-T5 Aluminum Alloy + PC |
|---|---|---|---|
| PC Cover Material: | Clear/ Diffuser/Opal/Black For Options | Accessories: | End Caps + Mounting Clip |
| Available Lengths: | 1m, 2m, 3m Or Customized | LED: | SMD2110/2014/2216/2835/3014/3528 For Options |
| High Light: | 12mm Led Profile,1612B Aluminum Strip Lights |
||
Product Description

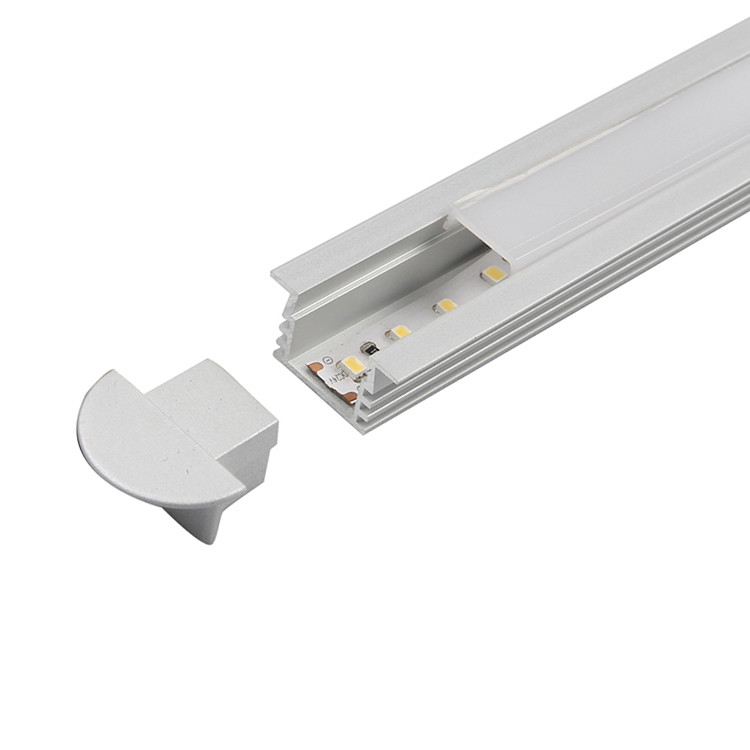

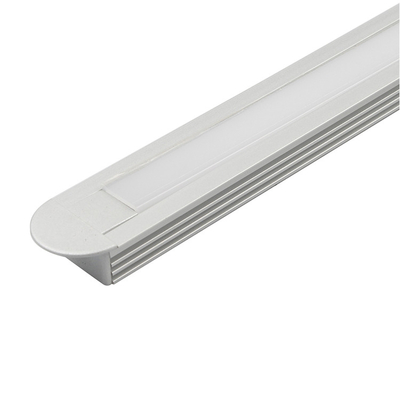

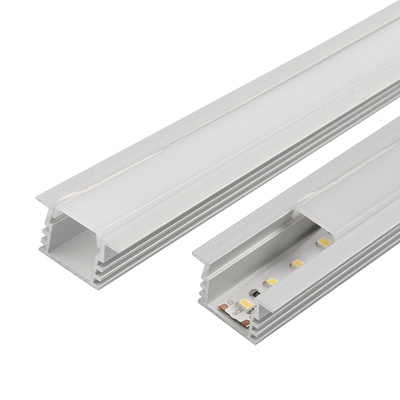

12mm Led Profile Recessed Channel 1612B Aluminum Strip Lights
Dimension(mm):
LED Strip Profile Specifications:
| Name | ADP-1612B |
| PC Cover | Clear, Diffuser, Opal, Black |
| Dimension | 21.7X12mm |
| PCB Width | 11mm |
| LED QTY | 120LED/m or above |
| Suitable LED | 2110/2014/2216/2835/3014/3528 |
| Installation method | Embedded installation, Ceiling mounted installation. |
PC Cover:

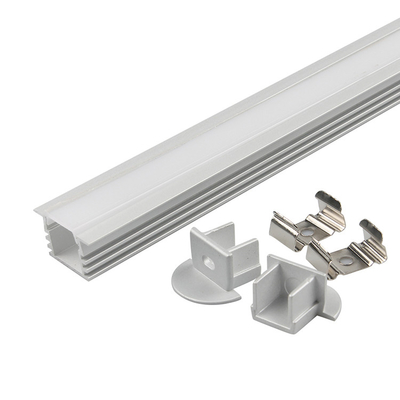

LED Strip Profile Accessories:
|
|
|
| End cap with hole | End cap without hole | Mounting clip |
Recessed LED Aluminum Profiles:
Different types of LED strip diffuser
Aluminum Channels also called LED Profiles, LED Extrusions, LED Housing, LED Strip Channels, Aluminium Profile LED, LED Aluminum Channels or LED Aluminum Profiles. These specially designed LED Profiles & Extrusions can be perfectly installed in the recesses of cabinets,wardrobe, ceilings, stairs, walls, and floors.
Why choose LED light strip diffuser?
You can see clearly from the picture, LED strip with diffuser provides spotless lighting, it looks more softer and comforable than spot lighting LED strip lights without diffuser cover. LED strip channel with diffuser is important in lighting, it can protect your eyes. Also, LED aluminum strip can installed flatly, offer more beautiful lights in even illumination.
LED aluminium profiles for LED strips - as versatile as their applications
Variety is the key. No matter whether already in the construction planning or retrofitted. LED aluminium profiles can really be used everywhere. The possibilities are almost unlimited. You will find a large selection with us. Innovative and uncompromising products. Timeless and modern design. You will find LED aluminium profiles for every area of application in our categories.
Requirements for an all-rounder
Made of sturdy aluminium, the LED aluminium profiles with cover ensure terrific results. The LED strip is protected and can be used optimally. The LED aluminium profile must be designed for a wide variety of applications. For example, a profile in the walkway and driveway area can withstand up to 1 tonne of weight. The LED aluminium profiles are usually available in lengths of 1m or 200cm. However, these can be easily cut to size at any time. The LED strips are laid in them and a cover is pushed in. Some LED aluminium profiles are specially designed for tiles and drywall. More on this below.
Which LED aluminium profile is right for me?
As always, this is not an easy question to answer. First you have to decide whether you need a surface-mounted profile or a recessed profile. A surface-mounted profile can be retrofitted at any time. A built-in profile is best planned before renovation or construction. How many metres do you need? Should it be flat or high? Pay attention to the correct width. Every LED strip has a different width. Please make sure that your desired profile is suitable for the strip width. Especially with surface-mounted profiles, the colour often plays a role. Most are anodised aluminium, i.e. silver. But you will also find white and black LED profiles in our range. On request, we can also have them painted in any other colour!
Which covers should I choose for my LED aluminium profiles?
With each of our LED aluminium profiles you will also find the matching covers, end caps, etc. Every pot has its lid. But not every cover fits every profile. Would you like a matt or milky cover? Then you will find these under the designation opal. Note that these always mean a little loss of light. Clear covers are often just as popular. Here you lose no light and see the typical LED chip points, if desired. Intermediate solutions are also available, which are only slightly opal. In this way, an optimal result is often achieved. While the profile is made of aluminium, the cover is made of plastic.
The special features of LED aluminium profiles and their possible applications in detail
Our categories include many subcategories so that you can quickly and easily find the right LED aluminium profile for your LED strip.
Here is a short overview:
Surface-mounted profiles: LED aluminium profiles for surface mounting. Directly visible. Easy retrofitting to ceiling or wall.
Recessed profiles: ED aluminium profiles for recessed mounting: Hidden in the building material. You often only see the edge or the cover.
Corner profiles: ED Alu Profiles for surface mounting and installation at corners. For example, at ceiling edges or at 90° angles on walls.
Round profiles: Round surface-mounted profiles for mounting LED strips
Luminaire profiles: Can be used as surface-mounted or pendant luminaires with the appropriate accessories
Drywall profiles: Specially designed for mounting on drywall panels
U-profiles: Flat and high U-shaped surface-mounted profiles
Slot profiles: for mounting in and on slots. Flat or high.
H-profiles: Mounting profiles flat and high in H-shape
T-profiles: recessed profiles in "T-shape" - visible profile edges next to the cover.
Base profiles: LED aluminium profiles for LED strips as skirting boards
Staircase profiles: A range for stair treads inside and outside edges, walkable...
