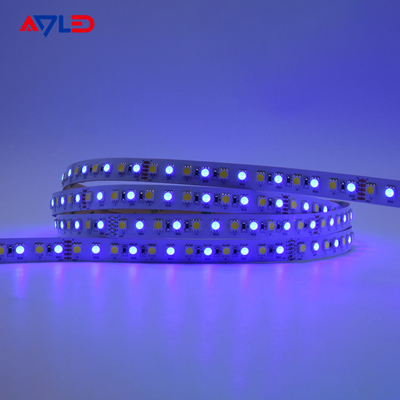

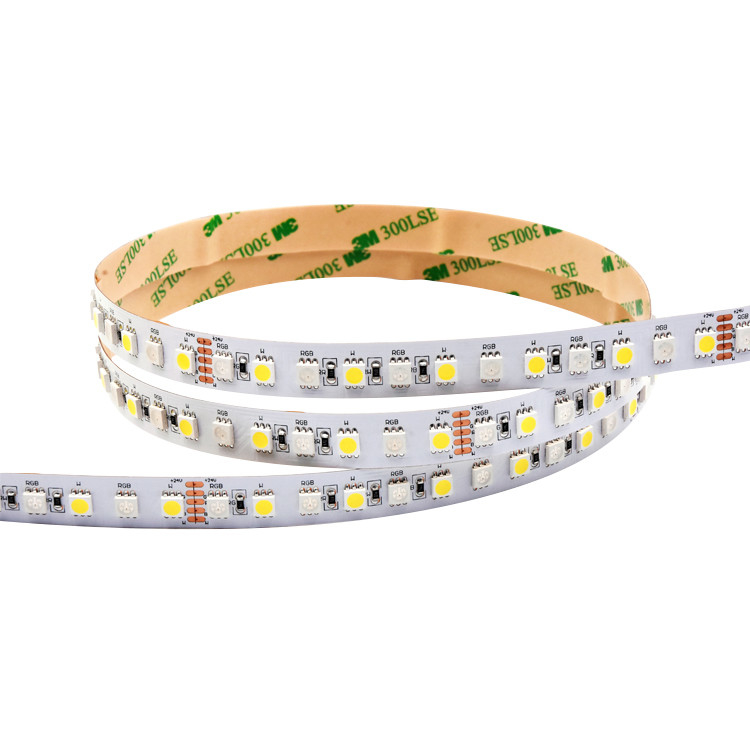

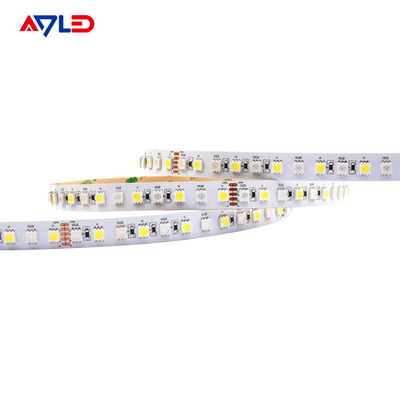

96leds/M SMD 5050 RGBW LED Strip High Lumen RGB Flexible for Indoor Decoration
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS |
| Model Number: | ADS-Y5050-96RGB+W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Packaging Details: | 5m(16.4ft) Per Roll |
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name:: | RGBW 5050 96 LED Tape Light | Model:: | ADS-Y5050- 96RGB+W |
|---|---|---|---|
| Voltage:: | DC12V/24V | LEDs Per Metre:: | 96 |
| Watts Per Metre:: | 19.2W | Colour Temperature:: | Red/Green/Blue/White/Mixed |
| IP Rating:: | IP20/IP65/IP67/IP68 | Beam Angle:: | 120° |
| Warranty:: | 2 Years | PCB Width:: | 12mm |
| High Light:: | 12 Volt IP68 LED Strip Lights, 6500K IP68 LED Strip Lights, 12 Volt Waterproof LED Strip Lights | ||
| High Light: | 96leds/M RGBW LED Strip,SMD 5050 RGB LED Strip,Flexible DC24V RGB LED Strip |
||
Product Description
96leds/M SMD 5050 RGBW LED Strip High Lumen RGB Flexible Led Strip Lightfor Indoor Decoration Lighting
Low carbon economy time,advocating energy saving and emission reduction and environmental protection green life
NOTE:
IP20 Non waterproof (3M adhensive back)
IP65 Waterproof (3M adhensive back)
Features
1.SMD5050 high powered LEDs delivering
2.Double sided copperplate design,low voltage drop
3.DC12/24V optional
4.IP20/IP65/IP67/IP68 optional
5.RGB controllable to make color jumping or gradient
China LED COB Strip Light Manufacturer
ADLED Light is one of top-tier COB flexible LED strip factory in China. Our R&D team develop new COB lighting strip each month. You can get a wide range of COB LED stripe with 2 to 3 years warranty. All our flexible COB LED strip are of UL, CE, RoHS certified products, guarantee 2 or 3 years warranty. |
|
What is LED Strip NO Dots?
LED strip dotless means directly package chips on the circuit board (PCB), then drop a layer of glue mixed with phosphor powder on the surface of chips.
Manufacturing COB LED strip light eliminates the wire bonding process of SMD chips and soldering brackets compared with SMD LED tape production, it greatly improved the stability of the product and better heat dissipation.
RGB LED Strip Application:
• Gazebos Lighting • Theater Lighting
• Edge Lighting • Clothing Lighting
• Ambient Lighting • Backyard Lighting
• Eave Lighting • Shelving Lighting
• Art Galleries Lighting • Hotel Room Lighting
• Staircase Lighting • Walls Lighting
• Halloween Costume Lighting • Christmas Lighting
• Under Cabinet • Behind Shelving Lighting
• Bathroom Lighting • Entertainment Lighting
Professional LED Strip Manufacturer
RGB LED Strip FAQ:
Q: How to connect RGB LED strip?
Step 1: Prepare a RGB LED strip connector 4 pin
Step 2: Cutting LED strip lights at soldering point
Step 3: Put LED strip into connector, make sure "+" of LED strip connect to "+"
Step 4: Cover the connector firmly
Step 5: Connect RGB LED strip lights to power supply
Q: What RGB LED strip connector you have?
Strip to strip, strip to controller, strip 4pin male to 4pin female connector
LED strip connector 4 pin
RGB LED strip 90 degree connector
4 pin LED strip connector with cable
T shape 4 pin RGB LED strip connector
4 pin LED strip light wire connectors
Q: How to connect RGB LED strip to power supply?
Step 1: Prepare LED accessory, such as LED strip light controller, LED power supply
Step 2: Connect 5050 LED RGB strip to LED tape controller
Step 3: If you use 12v RGB LED strip, link to a 12v LED strip light driver
