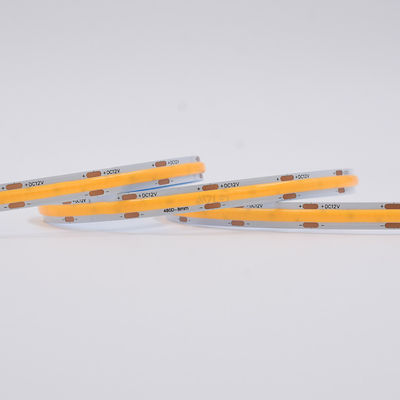

16.4Ft 480LEDS/M No Solder Joints for 8mm PCB Board Whole Reel COB LED Strip Light
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS |
| Model Number: | ADS-DCOB-480-12-R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Packaging Details: | 5m(16.4ft) Per Roll |
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | 480 LEDS/M Reel To Reel COB LED Strip Light | Model: | ADS-DCOB-480-12-R |
|---|---|---|---|
| Watts Per Metre: | 10W | Voltage: | DC12V/24V |
| LEDs Per Metre: | 480 | Color: | 2700K/3000K/4000K/6500K |
| IP Rating: | IP20/IP67 | Warranty: | 2 Years |
| Beam Angle: | 180° | PCB Width: | 8 Mm |
| High Light: | 8mm COB LED Strip Light,16.4Ft COB LED Strip Light,480LEDS/M COB LED Strip Light |
||
Product Description
16.4Ft 480LEDS/M No Solder Joints for 8mm PCB Board Whole Reel COB LED Strip Light
1. Space Efficiency:
Space Efficiency: The high LED density of a 480LED/m COB LED strip means you can achieve brighter lighting in a smaller space. This makes it particularly useful in applications where there are space constraints or when you require a high level of illumination in a compact area.
2. Seamless Lighting:
COB LED strips utilize the Chip-on-Board technology where multiple LED chips are directly mounted onto a substrate to form a continuous line of lighting. This construction eliminates the traditional spacing between individual LEDs found in regular LED strips, resulting in a seamless lighting effect without visible gaps or dots.
3. Improved Heat Dissipation:
COB LED technology allows for efficient heat dissipation. The compact arrangement of the LEDs on the chip helps in dissipating heat more effectively, reducing the risk of overheating and prolonging the lifespan of the LEDs.
4. Enhanced Durability:
The Reel-to-Reel manufacturing process also contributes to the durability of COB LED strips. The direct attachment of LED chips to the substrate provides mechanical stability and protection against external factors such as vibrations, impacts, and moisture. This makes them suitable for applications in challenging environments or installations that require robust lighting solutions.
LED Strip Supplier
|
All our best light strips are of UL, CE, RoHS certified products, guarantee a 3 or 5 years warranty. |
|
Energy Efficiency:
While the brightness is increased, the energy efficiency of the COB LED strip is not significantly compromised. COB LED technology often offers good energy efficiency, allowing you to save on power consumption while still achieving a high level of illumination.
COB LED Strip Specifications:
| Model | ADS-DCOB-480-12-R |
| LED type | COB |
| LEDs per metre | 480 |
| Operating voltage | DC12V/24V |
| Watts per metre | 10W |
| Color | 2700K/3000K/4000K/6500K |
| IP rating | IP20/IP67 |
| PCB width | 8 mm |
| Cut points | 25 mm |
| Beam angle | 180° |
| Warranty | 2 Years |
| Certifications | UL/CE/RoHS/ErP |
| Package | 5m(16.4ft) per roll |
| Color changeable |
Color jumping or gradient controlled by LED COB tape controller |
Uniform Illumination:
The high LED density of the COB LED strip light ensures uniform illumination along its length. The closely placed LED chips minimize hotspots or dark spots, providing a consistent and even distribution of light. This is important for applications that require uniform and aesthetically pleasing lighting, such as retail displays or accent lighting.
COB LED Strip Application:
• Interior lighting
• Under-cabinet lighting
• General illumination
• Entertainment lighting
• Stage lighting
• Task lighting
• Decorative lighting
• Ceiling lighting
COB LED Strip FAQ:
Q: Why more and more people choose COB LED tape?
COB LED tape has many big advantages compared with SMD LED strip, such as perfect linear lighting effect, more flexibility, etc. With advanced craft, it can produce more perfect CRI and color temperature values.
Q: Can you link LED strip lights?
Yes, you can link LED strip lights easily. We can provide lots of LED strip accessory, 10mm LED strip connector, 8mm LED strip connector for 528chips COB LED strip.
Q: Is COB LED strip dimmable ?
Yes, you can dim these dimmable COB LED strip with a simple LED dimmer.
Q: Can you make waterproof COB LED strip?
Yes, we can make waterproof COB LED strip IP65, IP67, IP68 for different lighting applications.
Q: Do COB LED strip need aluminum profile for heat dissipation?
Yes, LED aluminum profile can help COB light strip to dissipate heat better and prolong the life of the COB light strip.
