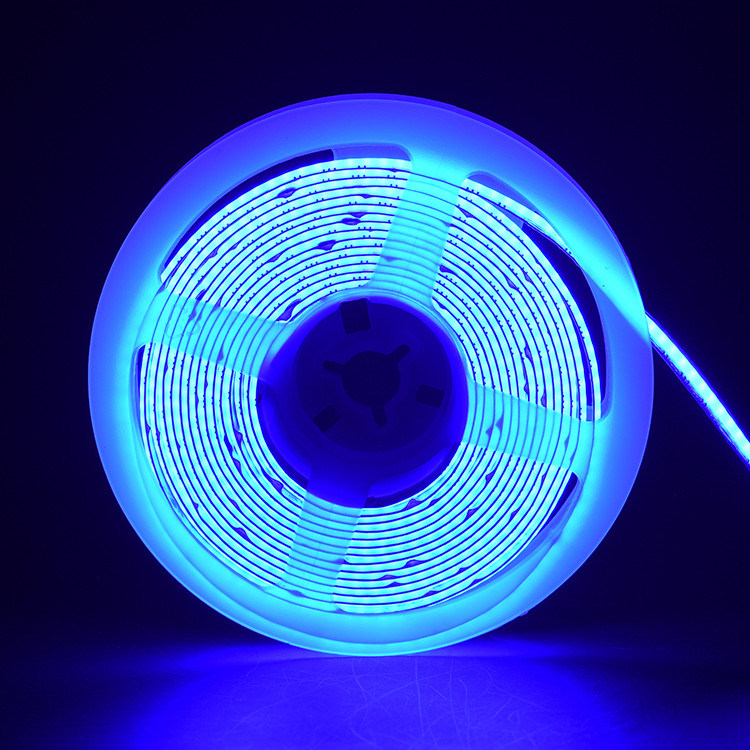

12V 24V Flexible LED Light RGB white 896LEDs/M CRI 90+ COB LED Tape Strip Light
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS |
| Model Number: | ADS-YCOB-896RGBW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Packaging Details: | 5m(16.4ft) Per Roll |
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | RGBW 896Chips/m COB LED Tape Light | Model: | ADS-YCOB-896RGBW |
|---|---|---|---|
| Voltage: | DC24V | LEDs Per Metre: | 896 |
| Watts Per Metre: | 16W | Color: | RGBW |
| IP Rating: | IP20/IP65/IP67/IP68 | Beam Angle: | 180° |
| Warranty: | 3 Years | PCB Width: | 12mm |
Product Description
12V 24V Flexible LED Light RGB white 896LEDs/M CRI 90+ COB LED Tape Strip Light
What is COB?
In the LED world, COB is the abbreviation for Chip on Board, which basically means to package the LED die directly on the circuit board (PCB). The ‘Chip on Board’ LED used on flexible strip lights is also sometimes called a flip-chip.
Benefits of COB Strip Light
1. Seamless LED Strip
Hot spot lights of traditional RGBW light strip are bad for eyes, Chip on board LED strip RGBW emit uniform brightness, shines in one straight line, it emits perfect lighting even without LED Strip diffuser.
2. More Flexible Light Strips
Usually hundreds of chips combines in one meter RGBW dotless LED strip lights, the space between two chips is ultra narrow, you can bend arbitrarily the addressable LED strip RGBW without any damages.
3. Color Changing LED Strip Lights
LED strip lights color changing brings multi colors, you can select various colors you need, a good LED smart strip light for game room, bar, hotel, etc.
|
4. 180° Beam Angle |
|
5.Types of Dotless LED Strip Lights
The LED strip lights high density of ADLED have indoor LED strip lights, outdoor LED strip lights, waterproof grades include IP20 LED strip, IP54 LED strip, IP65 waterproof LED strip, IP66 LED strip light, IP67 waterproof LED strip, IP68 LED strip lights.
Flexible LED Strip Manufacturers
|
|
|
What is NO DOT LED Strip Lights?
Dotless RGB LED strip lights means directly package chips on the circuit board (PCB), then drop a layer of glue mixed with phosphor powder on the surface of chips.
Manufacturing RGBW COB LED strip eliminates the wire bonding process of SMD chips and soldering brackets compared with flexible strip LED lights production, it greatly improved the stability of the product and better heat dissipation.
COB LED Strip Specifications:
| Model | ADS-YCOB-896RGBW |
| LED type | COB (Chip On Board) |
| LEDs per metre | 896 |
| Operating voltage | DC24V |
| Watts per metre | 16W |
| Color | RGBW |
| IP rating | P20/IP65/IP67/IP68 |
| PCB width | 12mm |
| Cut points | 31.25mm(1.23'') for 24V |
| Beam angle | 180° |
| Warranty | 3 Years |
| Certifications | UL/CE/RoHS/ErP |
| Package | 5m(16.4ft) per roll |
| Color changeable |
Color jumping or gradient controlled by LED strip controller |
COB LED Strip Application:
Flexible LED light strips for auto, cars, trucks, campers, canopy, grow, aquarium, reef, coral, plant, fish tank
Features:
1.High efficiency,low heat,energy saving 90% compare with glass neon, ultra-high brightness.
2.Flexible,easy to bend and install, safely voltage and current, no harm to human body.
3.Can be accept special customization on requests.
4.Waterproof or non waterproof is available on reqests.
5.High performance as quality, long lifespan,more than 50000 hours.
6.No risk of mercury emission, environmental protection.
7.CE and RoHS certifications are passed..
COB LED Strip FAQ:
Q: Why more and more people choose COB lighting strip?
COB LED tape has many big advantages compared with SMD LED strip, such as perfect linear lighting effect, more flexibility, etc. With advanced craft, it can produce more perfect CRI and color temperature values.
Q: Can you link LED strip lights?
Yes, you can link dotless LED tape easily. We can provide lots of high density LED strips accessory, 10mm LED COB tape connector, 8mm COB LED strips connector for 528chips COB LED strip.
Q: Is COB LED strip dimmable ?
Yes, you can dim these dimmable COB LED light strip with a simple LED dimmer.
Q: Can you make waterproof COB LED strip light?
Yes, we can make waterproof COB LED strip IP65, IP67, IP68 for different lighting applications.
Q: Do COB LED strip need aluminum profile for heat dissipation?
Yes, LED aluminum profile can help COB light strip to dissipate heat better and prolong the life of the COB light strip.
