10.4mm Wide Aluminium Profile For Led Strips Light Modern Design Aluminium Profile Led
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | CE/RoHS |
| Model Number: | ADP-1616A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | Decorative LED Aluminum Profile For LED Strip Light | Material: | 6063-T5 Aluminum Alloy + PC |
|---|---|---|---|
| PC Cover Material: | Clear/ Diffuser/Opal/Black For Options | Accessories: | End Caps + Mounting Clip |
| Available Lengths: | 1m, 2m, 3m Or Customized | LED: | SMD2110/2014/2216/2835/3014/3528 For Options |
Product Description
10.4mm Wide Aluminium Profile For Led Strips Light Modern Design Aluminium Profile Led

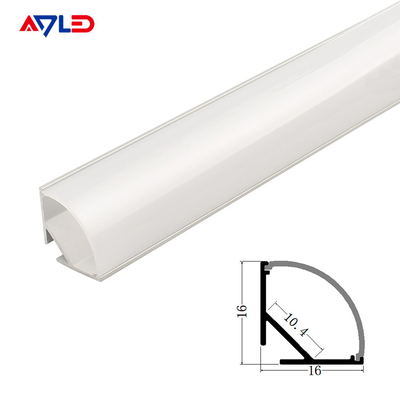

Dimension(mm):
LED Strip Profile Specifications:
| Name | ADP-1616A |
| PC Cover | Clear, Diffuser, Opal, Black |
| Dimension | 16*16mm |
| PCB Width | 10.4mm |
| LED QTY | 120LED/m or above |
| Suitable LED | 2110/2014/2216/2835/3014/3528 |
| Installation method | Embedded installation, Ceiling mounted installation. |
PC Cover:

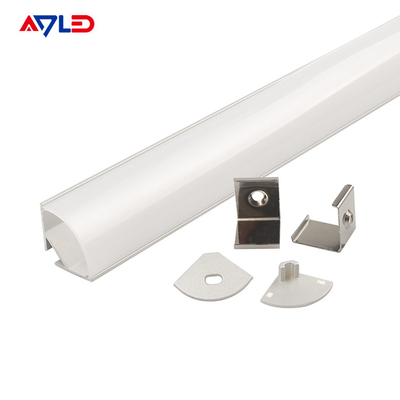

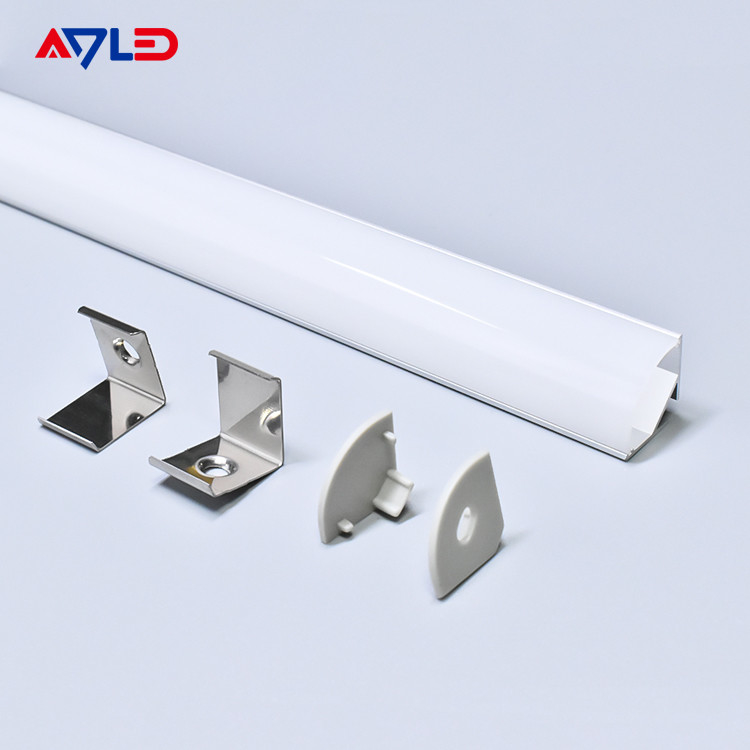

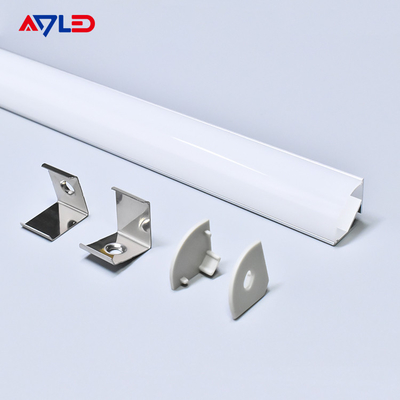

LED Strip Profile Accessories:
|
|
|
| End cap with hole | End cap without hole | Mounting clip |
Surface Mounted LED Aluminum Profile:
Different types of LED strip diffuser
This LED strip profile is essential if you want to ensure that your strips have adequate protection against dust and moisture. However, we want to clarify that this profile is not waterproof so if you're planning to install strip lights in your bathrooms, get an IP65 rated light and a suitable profile to give them extra protection. This LED profile can only provide minimal protection against moisture, so they're more ideal in the kitchen, living room, bedroom, and places that are less likely to get wet.
Parameter:
Production name: Led Strip aluminum profiles
Cover: White/Frosted/Black/Clear PC Cover
Raw Material: Aluminum+ Pc cover
Installation:Surface & Recessed Mounted
Length:1M/2M/3M customization
Why choose LED light strip diffuser?
As you can clearly see from the diagram, LED strips with diffusers provide spotless illumination that looks softer and more pleasant than point-source LED strips without diffusers. LED strips with diffusers are very important in lighting to protect your eyes. In addition, LED aluminium strips can be installed flat, providing a more beautiful light in an even illumination.
