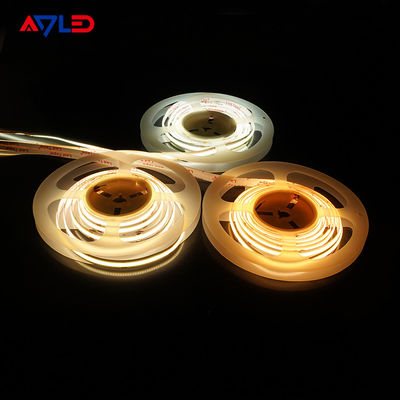

Waterproof LED Tape Light Under Cabinet COB Dotless Outdoor 12V 24V 2700K 3000K 5000K
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS |
| Model Number: | ADS-YCOB-336 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Packaging Details: | 5m(16.4ft) Per Roll |
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | Economical 336Chips/m COB LED Strip Light | Model: | ADS-YCOB-336 |
|---|---|---|---|
| Voltage: | DC12V/24V | LEDs Per Metre: | 336 |
| Watts Per Metre: | 8W | Colour Temperature: | 3000K/4000K/6500K/Red/Green/Blue/Yellow |
| IP Rating: | IP20/IP65/IP67/IP68 | Beam Angle: | 180° |
| Warranty: | 3 Years | PCB Width: | 8mm |
| Highlight: | Waterproof LED Tape Light,2700K LED Tape Light,COB Tape Light Under Cabinet |
||
Product Description
LED Tape Light Under Cabinet COB Dotless Outdoor Waterproof 12V 24V 2700K 3000K 5000K
Benefits of COB LED Strip Light
1. Dotless LED Tape
Hot spot lights of traditional best LED strip lights are bad for eyes, COB tape lighting LED emit uniform brightness, shines in one straight line, it emits perfect lighting even without LED aluminum profile.
2. More Bendable LED Strip
Usually hundreds of chips combines in one meter of COB strip light 12v, the space between two chips is ultra narrow, you can bend arbitrarily LED ceiling light strip without any damages.
3. Brightest of LED Strip
ADLED wholesale COB flexible LED strip up to 100LM/W is more bright than SMD LED light strips in room.
|
4. 180° Beam Angle |
|
5.Types of Chip on Board LED Strip
The waterproof COB LED strip light of ADLED have single strip LED light, mini cuttable LED strips, small LED strip lights, 5v dc LED strip, dual LED strip, RGB strip lighting and RGBW LED strips.
COB LED Tape Light Manufacturers
|
|
|
What is COB LED Strip Lights without dots?
LED dotless tape light means directly package chips on the circuit board (PCB), then drop a layer of glue mixed with phosphor powder on the surface of chips.
Manufacturing no dot LED strip eliminates the wire bonding process of SMD chips and soldering brackets compared with LED tape lights production, it greatly improved the stability of the product and better heat dissipation.
COB LED Strip Specifications:
| Model | ADS-YCOB-336 |
| LED type | COB (Chip On Board) |
| LEDs per metre | 336 |
| Operating voltage | DC12V/24V |
| Watts per metre | 8W |
| Colour temperature | 2700K/3000K/4000K/5000K/6500K/Red/Green/Blue/Yellow |
| IP rating | P20/IP65/IP67/IP68 |
| PCB width | 8mm |
| Cut points | 35.71mm(1.41'') for 12V; 62.5mm(2.46'') for 24V |
| Beam angle | 180° |
| Warranty | 3 Years |
| Certifications | UL/CE/RoHS/ErP |
| Package | 5m(16.4ft) per roll |
| Dimmable |
0-100% dimmable by LED strip light dimmer |
COB LED Strip Application:
• Above Cabinet Lighting • Art Galleries Lighting
• Bathrooms Lighting • Cabinet Lighting
• Closets Lighting • Desk Lighting
• False Ceiling Lighting • Gazebos Lighting
• Hotel Lighting • Inspection Room Lighting
• KTV Lighting • Vanity Mirror Lighting
• Mood Lighting • Party Lighting
• Restaurant Lighting • Shopping Mall Lighting
• Stage Design Lighting • Task Lighting
COB LED Strip FAQ:
Q: Why more and more people choose COB LED tape?
COB LED tape has many big advantages compared with SMD LED strip, such as perfect linear lighting effect, more flexibility, etc. With advanced craft, it can produce more perfect CRI and color temperature values.
Q: Can you link LED strip lights?
Yes, you can link LED strip lights easily. We can provide lots of LED strip accessory, 10mm LED strip connector, 8mm LED strip connector for 528chips COB LED strip.
Q: Is COB LED strip dimmable ?
Yes, you can dim these dimmable COB LED strip with a simple LED dimmer.
Q: Can you make waterproof COB LED strip?
Yes, we can make waterproof COB LED strip IP65, IP67, IP68 for different lighting applications.
Q: Do COB LED strip need aluminum profile for heat dissipation?
Yes, LED aluminum profile can help COB light strip to dissipate heat better and prolong the life of the COB light strip.
