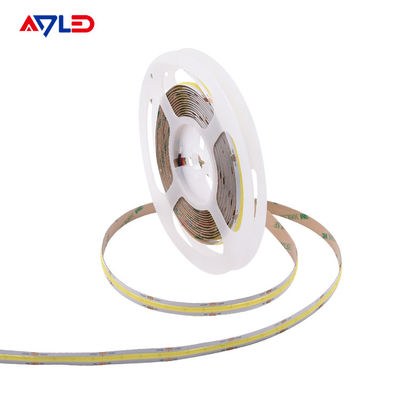

Economical COB Flexible LED Lights Strips 12V Outdoor For Bedroom
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS |
| Model Number: | ADS-YCOB-504 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Packaging Details: | 5m(16.4ft) Per Roll |
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | Economical 504Chips/m COB LED Strip Light | Model: | ADS-YCOB-504 |
|---|---|---|---|
| Voltage: | DC12V/24V | LEDs Per Metre: | 504 |
| Watts Per Metre: | 12W | Colour Temperature: | 2700K-6500K/Red/Green/Blue/Yellow |
| IP Rating: | IP20/IP65/IP67/IP68 | Beam Angle: | 180° |
| Warranty: | 3 Years | PCB Width: | 10mm |
| High Light: | Economical Flexible LED Lights Strips,12V Flexible LED Lights Strips,COB Flexible LED Strips |
||
Product Description
LED Lights Strips Flexible COB Best Bright 12V Red Blue Green White Outdoor for Bedroom
Benefits of LED COB Tape
1. Dot Free LED strip lights
Hot spot lights of traditional high intensity LED light strips are bad for eyes, COB dotless linear LED strip light emit uniform brightness, shines in one straight line, it emits perfect lighting even without LED aluminum profile.
2. More Flexible LED Strip light
Usually hundreds of chips combines in one meter of COB LED strip lighting, the space between two chips is ultra narrow, you can bend arbitrarily LED COB strip without any damages.
3. Better Bright LED Strip Light
COB strip light up to 100LM/W is more bright than high density flexible LED strip light.
|
4. 180° Beam Angle |
|
5.Types of COB LED Strip
The COB light strip of ADLED have warm white LED strip, natural white LED strip, white LED strip lighting, red LED light strip, LED green strip lights, blue LED light strips, yellow LED strip lights, RGB strip light, RGBW strip lights, dreamcolor LED strip lights, tunable white LED strip light, etc.
China LED COB Strip Light Manufacturer
|
|
|
What is LED Strip NO Dots?
LED strip dotless means directly package chips on the circuit board (PCB), then drop a layer of glue mixed with phosphor powder on the surface of chips.
Manufacturing COB LED strip light eliminates the wire bonding process of SMD chips and soldering brackets compared with SMD LED tape production, it greatly improved the stability of the product and better heat dissipation.
COB LED Strip Specifications:
| Model | ADS-YCOB-504 |
| LED type | COB (Chip On Board) |
| LEDs per metre | 504 |
| Operating voltage | DC12V/24V |
| Watts per metre | 12W |
| Colour temperature | 2700K/3000K/4000K/5000K/6500K/Red/Green/Blue/Yellow |
| IP rating | P20/IP65/IP67/IP68 |
| PCB width | 10mm |
| Cut points | 17.86mm(0.7'') for 12V; 41.67mm(1.64'') for 24V |
| Beam angle | 180° |
| Warranty | 3 Years |
| Certifications | UL/CE/RoHS/ErP |
| Package | 5m(16.4ft) per roll |
| Dimmable |
0-100% dimmable by LED strip light dimmer |
COB LED Strip Application:
• Above Fish Tanks Lighting • Awning Lighting
• Behind Bed Lighting • Camping Lighting
• Commercial Lighting • Display Cases Lighting
• Film Lighting • General Ambient Lighting
• Hotel Lobby Lighting • Kitchen Cabinets
• Linear Lighting • Museum Lighting
• Pathway Lighting • Roof Lighting
• Showers Lighting • Staircase Lighting
• Toe Kick Lighting • Wall Lighting
COB LED Strip FAQ:
Q: Why more and more people choose COB LED tape?
COB LED tape has many big advantages compared with SMD LED strip, such as perfect linear lighting effect, more flexibility, etc. With advanced craft, it can produce more perfect CRI and color temperature values.
Q: Can you link LED strip lights?
Yes, you can link LED strip lights easily. We can provide lots of LED strip accessory, 10mm LED strip connector, 8mm LED strip connector for 528chips COB LED strip.
Q: Is COB LED strip dimmable ?
Yes, you can dim these dimmable COB LED strip with a simple LED dimmer.
Q: Can you make waterproof COB LED strip?
Yes, we can make waterproof COB LED strip IP65, IP67, IP68 for different lighting applications.
Q: Do COB LED strip need aluminum profile for heat dissipation?
Yes, LED aluminum profile can help COB light strip to dissipate heat better and prolong the life of the COB light strip.
