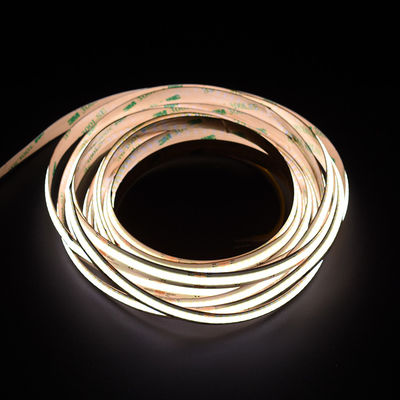

Adjustable Led Strip Lights Chip On Board CCT Dotless Lighting CRI90 640 LEDs/M 10mm
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS |
| Model Number: | ADS-YCOB-640CCT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Packaging Details: | 5m(16.4ft) Per Roll |
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | Adjustable Led Strip Lights Chip On Board CCT Dotless Lighting CRI90 | Model: | ADS-YCOB-640CCT |
|---|---|---|---|
| Voltage: | DC24V | LEDs Per Metre: | 640 |
| Watts Per Metre: | 16W | Color: | 2700K To 6500K |
| IP Rating: | IP20/IP65/IP67/IP68 | Beam Angle: | 180° |
| Warranty: | 3 Years | PCB Width: | 10mm |
| Package: | 5m/roll | Cutting Unit: | 50mm |
| High Light: | Adjustable Led Strip Lights,CRI90 Led Strip Lights,640 LEDs/M Led Strip Lights |
||
Product Description
adjustable led strip lights chip on board CCT dotless lighting CRI90 640 LEDs/m 10mm
Types of Adjustable LED Light COB Strip
ADLED adjustable led strip, crafted for perfection and innovation. With a generous length of 500cm and 640 chips per meter, ensuring a breathtakingly beautiful and uniform illumination.
Experience the pinnacle of lighting technology with our adjustable led strip lights, meticulously engineered with the latest COB technology to eliminate any visible "spots" even at higher light levels.
Your lighting experience is now completely customizable with our dual white LED controllers, allowing you to effortlessly transition between atmospheric super warm white at 2700K to a neutral working light, all the way up to the invigorating brightness of daylight at 6500K.
Measuring 5 meters in length and 10 mm in width, this cob adjustable led strips epitomizes efficiency, delivering an outstanding performance of 100 lumens per watt and an impressive 1600 lumens per meter.
Moreover, our commitment to quality is reflected in the inclusion of an extensive 3-year warranty, providing you with peace of mind and assurance in your investment.
All our COB adjustable strip boast an exceptionally high CRI (Color Rendering Index) of >=90, ensuring that colors remain vivid and true to life. Say goodbye to dull and lifeless interiors, and embrace the brilliance of our ADLED adjustable white led strip.
Benefits of COB LED Strip adjustable white
1. Dotless Adjustable strip lgihts
Hot spot lights of traditional led strip dim to warm are bad for eyes, cob led strip emit uniform brightness, shines in one straight line, it emits perfect lighting even without LED aluminum profile.
2. More Flexible LED Strip ww cw
640 chips combines in one meter best dim to warm led tape, the space between two chips is ultra narrow, you can bend arbitrarily the best tunable white led strip without any damages.
3. White Adjustable led strip
A dual colour led strip can bring you countless white LED light strips, those LED strip color temperature changes from 2700K to 6500K.
|
4. 180° Beam Angle |
|
5.Types of Adjustable led strip lights
The adjustable led strips of ADLED have 2835 tunable white led tape, 3528 led white color changing tape light, 315 side emitting warm white cool white led strip, smd 5050 multi white led strip and cob cct strip led.
Best Adjustable led strip Lights Manufacturers
|
|
|
What is COB Adjustable led strip lights?
cob cct led strips is a type of COB LED Strip, also belongs to tunable white LED strip.
COB tunable white led strip help you adjust various white colors according to your requirements, usually in a range of 2700K to 6500K color temperature.
This dual color led strip shines in one straight line, also can adjust white colors, an idea strip led for commercial lighting.
COB Adjustable LED Strip Lights Specifications:
| Model | ADS-YCOB-640CCT |
| LED type | COB (Chip On Board) |
| LEDs per metre | 640 |
| Operating voltage | DC24V |
| Watts per metre | 8W |
| Color | CCT |
| IP rating | P20/IP65/IP67/IP68 |
| PCB width | 10mm |
| Cut points | 25mm(0.98'') for 24V |
| Beam angle | 180° |
| Warranty | 3 Years |
| Certifications | UL/CE/RoHS/ErP |
| Package | 5m(16.4ft) per roll |
| Dimmable |
0-100% dimmable by LED strip light dimmer |
Tunable White COB LED Strip Dimensions:
Installation of COB Adjustable LED Strip Lights
Custom Lengths
Differing from typical suppliers, we offer led led strip lights in smaller 3-foot increments, up to 16.4 feet long (1 Reel = 5M). This flexibility caters to applications that require shorter sections of strips. Our led tape light are designed to be easily cut along the marked lines, indicated by a thin black line running over solder pads every 1.04 inches. The maximum run length is equivalent to 2 full reels, totaling 32.8 feet.
End-to-End Connections
In cases where there is a break in your application, you can still connect one strip led lights to another using 20-24 gauge wire. It's important to note that for COB LED Strips, the maximum run length is 32.8 feet (2 reels). Beyond this length, voltage drop becomes significant, resulting in decreased light output and efficiency. If your application requires a longer length, you will need either an additional power supply or to run wire from the extra strip directly back to the first power supply (wiring in parallel).
Power
Our strip lighting require a 24VDC input, which can be supplied by either a battery or a 24V Power Supply. The strip ceiling lights operate at roughly 16 Watts per meter. It's essential to ensure that you have sufficient wattage when running your specified length of strip.
COB Adjustable LED Strip Lights Application:
CCT COB LED Strip are widely used in shopfitting, interior lighting, linear lighting solutions, building and commercial lighting.
Adjustable COB LED Strip Lights Comments
COB CCT LED Strip FAQ:
Q: Why more and more people choose led strip cob?
LED COB 24V Strip light has many big advantages compared with SMD LED strip, such as perfect linear lighting effect, more flexibility, etc. With advanced craft, it can produce more perfect CRI and color temperature values.
Q: Can you link dotless led strip?
Yes, you can link spotless led strip easily. We can provide lots of cob led strip 24v accessory, 10mm LED strip connector, 8mm LED strip connector for 528chips ledstrip cob.
Q: Is cob strip light dimmable ?
Yes, you can dim these cob lighting strip with a simple LED dimmer.
Q: Can you make waterproof cob light strip?
Yes, we can make waterproof cob light strips IP65, IP67, IP68 for different lighting applications.
Q: Do dotless led strip lights need aluminum profile for heat dissipation?
Yes, LED aluminum profile can help cob strip to dissipate heat better and prolong the life of the COB light strip.
