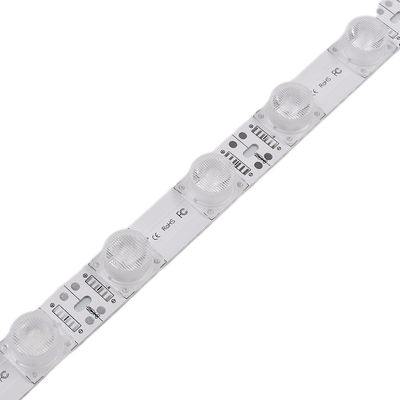

• 28.8w Smd3030 Edge Led Module Bar High Power Boxled Side Plus 5 Years Warranty For Double Sided Light Box Fabribox
  • 28.8w Smd3030 Edge Led Module Bar High Power Boxled Side Plus 5 Years Warranty For Double Sided Light Box Fabribox
  • 28.8w Smd3030 Edge Led Module Bar High Power Boxled Side Plus 5 Years Warranty For Double Sided Light Box Fabribox
  • 28.8w Smd3030 Edge Led Module Bar High Power Boxled Side Plus 5 Years Warranty For Double Sided Light Box Fabribox
28.8w Smd3030 Edge Led Module Bar High Power Boxled Side Plus 5 Years Warranty For Double Sided Light Box Fabribox

28.8w Smd3030 Edge Led Module Bar High Power Boxled Side Plus 5 Years Warranty For Double Sided Light Box Fabribox

Product Details:

Place of Origin: China
Brand Name: ADLED
Certification: UL/CE/RoHS/FCC
Model Number: ADS-E3030-18

Payment & Shipping Terms:

Minimum Order Quantity: 100M
Packaging Details: 2pcs/Package
Delivery Time: 7days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 100000M
Get Best Price Contact Now

Detail Information

Name: 28.8w Smd3030 Edge Led Module Bar High Power Boxled Side Plus 5 Years Warranty For Double Sided Light Box Fabribox Model: ADS-E3030-18
Voltage: DC12V/24V LEDs Per Metre: 18
Watts Per Metre: 28.8W/m Or Custom Colour Temperature: 3000K/4000K/6500K
IP Rating: IP67 Beam Angle: 15x45°
Length: 1006mm Warranty: 5 Years
High Light:

28.8w edge led module bar

,

high power edge led module bar

,

Smd3030 Edge Led Module Bar

Product Description

28.8w smd3030 edge led module bar high power boxled side plus 5 years warranty for double sided light box fabribox



Benefits of Light Bars for LED Fabric Frame



1. Best optical lens for LED lighted bar



We are proud of high power led light bar optical lens, 15x45° beam angle, it emits the best lighting in shadow box sign.

                      28.8w Smd3030 Edge Led Module Bar High Power Boxled Side Plus 5 Years Warranty For Double Sided Light Box Fabribox 0



2. IP20 & IP67

IP20 non waterproof leds light bars suitable for indoor edge lit led light box.
IP67 waterproof LED light bar suitable for commercial outdoor sign lighting.

28.8w Smd3030 Edge Led Module Bar High Power Boxled Side Plus 5 Years Warranty For Double Sided Light Box Fabribox 1 28.8w Smd3030 Edge Led Module Bar High Power Boxled Side Plus 5 Years Warranty For Double Sided Light Box Fabribox 2
IP20 edge LED light bar IP67 edge LED light bar



3. Easy install in Box Signs
IP20 type: Male & female quick connectors easy plug & play in led church signs. You can install bar lights led with back adhesive to the aluminum frames of lighted sign box.
IP67 type: You can connect LED Power Supply with DC quick connectors, fix light bars led with mouting clips to the frames of double sided led sign board.



28.8w Smd3030 Edge Led Module Bar High Power Boxled Side Plus 5 Years Warranty For Double Sided Light Box Fabribox 328.8w Smd3030 Edge Led Module Bar High Power Boxled Side Plus 5 Years Warranty For Double Sided Light Box Fabribox 4



4. Epistar chip
Our rigid bar led powered by Epistar SMD 3030, all approved UL, CE, ROHS, FCC, KC certificates, guarantee 5 years warranty.



5. 1.6mm Aluminum PCB Board
We use 1.6mm thick aluminum board for led lighting bars , to make sure good quality products and better heat sinking.



6. High Lumen led light bar module
Standard aluminum led light bar with 2160lm, super bright in double sided illuminated sign.



LED Light Bar Distributor

We are proud of OEM & ODM services for led light bar china since 2016, the first factory to develop light led bar in China.



Top distributors & sign light box manufacturers in Europe & USA speak highly our home led light bar.



We always stock linear led light bar materials, standard products can ship out in 7days.



28.8w Smd3030 Edge Led Module Bar High Power Boxled Side Plus 5 Years Warranty For Double Sided Light Box Fabribox 5



What is Light Bars for LED Fabric Frame?



Light bars for LED fabric frames are components used to light up fabric-based signage and displays. They're designed to fit around the edges or behind fabric in frames, providing even illumination for vibrant, eye-catching graphics. They're energy-efficient, easy to install, and enhance the visual appeal of displays in retail, trade shows, and other promotional settings.



Light Bars for LED Fabric Frame Specification:

Model ADS-E3030-18
LED type Epistar chip SMD3030 LED
LEDs per metre 18LEDs
Operating voltage DC12V/24V
Watts per metre 28.8W
Colour temperature 3000K/4000K//6500K
IP rating IP67
Length 1006mm
Driven Mode Constant Current
Beam angle 15x45°
PCB Width 25mm
Warranty 5 Years
Certifications UL/CE/RoHS/FCC
Dimmable 0-100% dimmable by LED strip light dimmer



28.8w Smd3030 Edge Led Module Bar High Power Boxled Side Plus 5 Years Warranty For Double Sided Light Box Fabribox 6



Light Bars for LED Fabric Frame Application:

Advertising Light Box                                                 Exhibit Trade Show Displays
Exhibition Display Stands                                          Fabric LED Light Box
Fabric Light Box Outdoor                                           LED Advertising Light Box
LED Light Box                                                            LED Light Box Frame
Light Box Signs Outdoor                                            SEG Fabric Frames
SEG Lightbox                                                             SEG Solutions
Sign Box Frame                                                         Wall Light Box



28.8w Smd3030 Edge Led Module Bar High Power Boxled Side Plus 5 Years Warranty For Double Sided Light Box Fabribox 7



Light Bars for LED Fabric Frame FAQ
Q: Which lighting project use your LED light bars?
Our LED light bars used in Olympic Games light boxes, Coca Cola poster box, Metro LED light frames, Airport LED fabric frame, etc.



Q: How to install LED light bars in double-sided fabric frame displays?
Step 1 : Caculate LED light bars quantity and how much LED power supply
Step 2: Clean the surface of aluminum frame light box
Step 3: Install LED light bars to two sides or four sides of lightbox
Step 4: Connect LED power supply with LED bar module



Q: How many piece (1m LED bar) can connect in parallel?
You can connect maximum 3pcs LED light bar.



Q: Can I cut LED light bars?
Yes, you can cut LED light bars at the soldering point.
DC12V edge lit LED bar can be cut each 1LED
DC24V edge lit LED bar can be cut each 2LEDs
