480 LEDs/M COB (Chip-On-Board) Reel To Reel LED Strip Light For Decorative Lighting
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS |
| Model Number: | ADS-DCOB-480-24-R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Packaging Details: | 5m(16.4ft) Per Roll |
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | 480 LEDs/m COB (Chip-on-Board) Reel-to-Reel LED Strip Light | Model: | ADS-DCOB-480-24-R |
|---|---|---|---|
| Watts Per Metre: | 10W | LEDs Per Metre: | 480 |
| Voltage: | DC24V | PCB Width: | 8mm |
| Color: | 3000K/4000K/6500K | IP Rating: | IP20/IP67 |
| Warranty: | 2 Years | Beam Angle: | 180° |
| High Light: | 480LEDs/M LED Strip Light,COB LED Strip Light 3000K,DC24V COB LED Strip |
||
Product Description

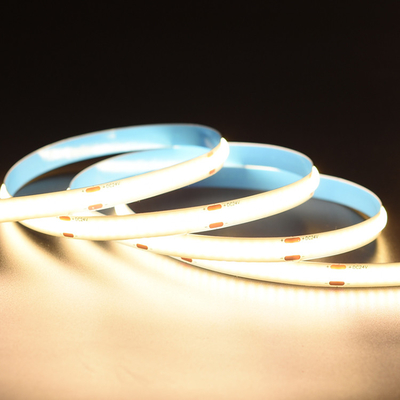

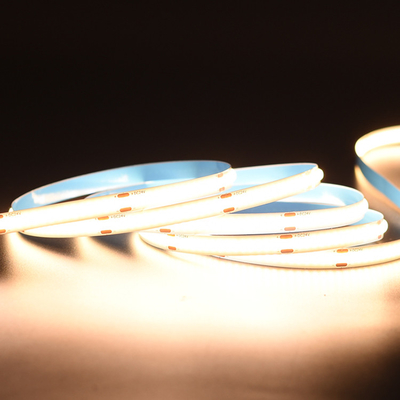

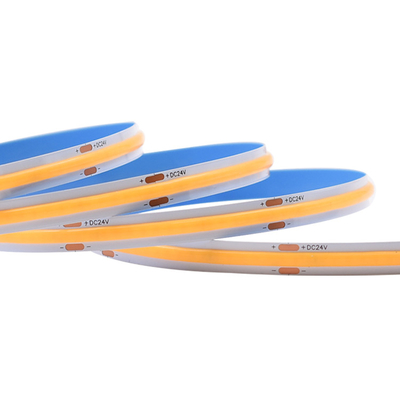

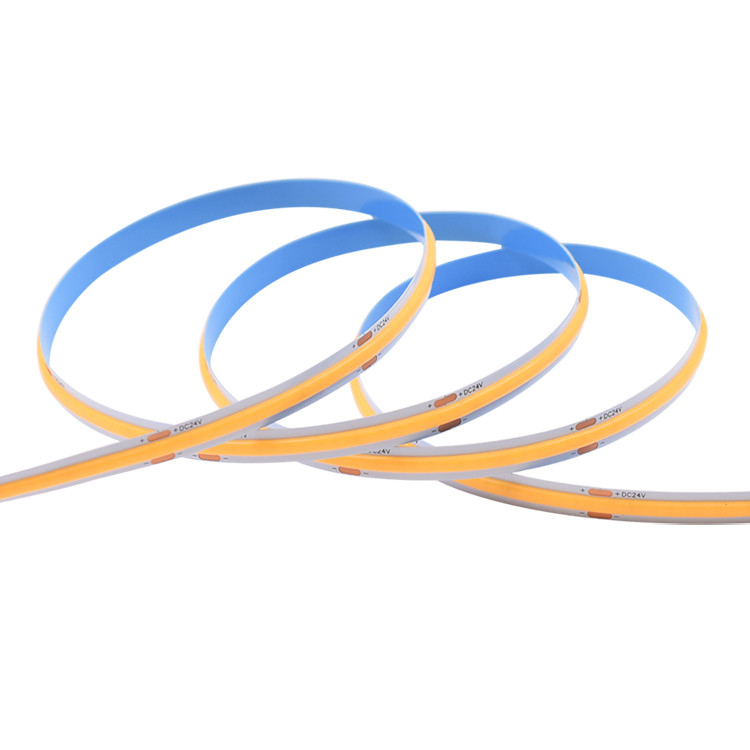

480 LEDs/m COB (Chip-on-Board) Reel-to-Reel LED Strip Light for Decorative Lighting
Benefits of COB Reel to Reel LED Strip
1. High Density LED Strip
COB Reel to Reel Strip has a high LED density of 480 LEDs per meter. This results in a greater number of LEDs per unit length, providing a higher level of brightness and illumination compared to lower density LED strips.
2. COB Reel to Reel LED Strip
Reel-to-reel PCB, no solder joints for whole reel, solder-free at every half meter, which avoidproblems like false soldering, or inaccurate length because of lap solder that happens on regular LED strip lights.
1. Chips-on-board design, dot free even without any profiles
2. Excellent lighting with SDCM in 5-step, high efficiency that's up to 100Lm/W@CRI90.
3. Double layer 2oz PCB, for better flexibility, heat dissipation and voltage drop
3. Energy Efficiency
Despite the high LED count, COB LED technology is known for its energy efficiency. The strip light can provide significant energy savings compared to traditional lighting sources, reducing electricity consumption and operating costs.
|
4. 180 Degree Beam Angle
Benifit from COB packaging techonology, LED chips is placed directly on PCB, without any housing blocking the light, beam angle of this strip can be 180degree, increase its uniformity in another way. |
|
5.Cuttable COB LED Light Strip
Flexibility is one of the most important feature of this strip, LEDs are mounted on flexible circuit board, it’s bendable to be fixed on different shapes of fixture. On the other aspect, a particular number of LEDs is fixed in series, each series of the strip can work independently, which means it can be cut to specific length as desired.
LED Strip Supplier
|
All our best light strips are of UL, CE, RoHS certified products, guarantee a 3 or 5 years warranty. |
 |
Color Temperature
We describle strip color as “warm white”, “cool white”. Actually, we are talking about its color temperature(CCT), ranking from 2700K-6500K, it’s measure of how warm or cool the light’s color appears. Troditional incandescent bulb is warm white(2700K) with soft glow, and daylight is white(6500K) with bright light.
COB LED Strip Specifications:
| Model | ADS-DCOB-480-24-R |
| LED type | COB (Chip On Board) |
| LEDs per metre | 480 |
| Operating voltage | DC24V |
| Watts per metre | 10W |
| Color | 3000K/4000K/6500K |
| IP rating | P20/IP67 |
| PCB width | 8mm |
| Cut points | 50mm for 24V |
| Beam angle | 180° |
| Warranty | 2 Years |
| Certifications | UL/CE/RoHS/ErP |
| Package | 5m(16.4ft) per roll |
| Color changeable |
Color jumping or gradient controlled by LED COB tape controller |
COB LED Strip Application:
• Interior lighting
• Under-cabinet lighting
• General illumination
• Entertainment lighting
• Stage lighting
• Task lighting
• Decorative lighting
• Ceiling lighting
COB LED Strip FAQ:
Q: Why more and more people choose COB LED tape?
COB LED tape has many big advantages compared with SMD LED strip, such as perfect linear lighting effect, more flexibility, etc. With advanced craft, it can produce more perfect CRI and color temperature values.
Q: Can you link LED strip lights?
Yes, you can link LED strip lights easily. We can provide lots of LED strip accessory, 10mm LED strip connector, 8mm LED strip connector for 480chips COB LED strip.
Q: Is COB LED strip dimmable ?
Yes, you can dim these dimmable COB LED strip with a simple LED dimmer.
Q: Can you make waterproof COB LED strip?
Yes, we can make waterproof COB LED strip IP65, IP67, IP68 for different lighting applications.
Q: Do COB LED strip need aluminum profile for heat dissipation?
Yes, LED aluminum profile can help COB light strip to dissipate heat better and prolong the life of the COB light strip.
