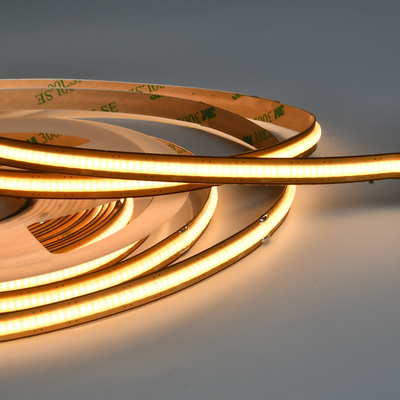

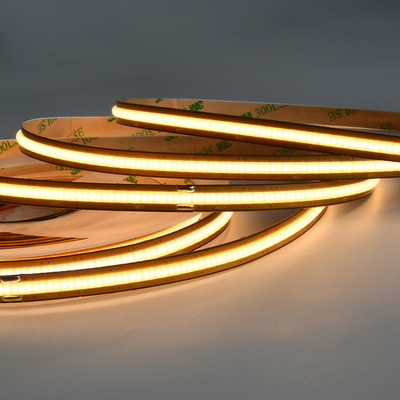

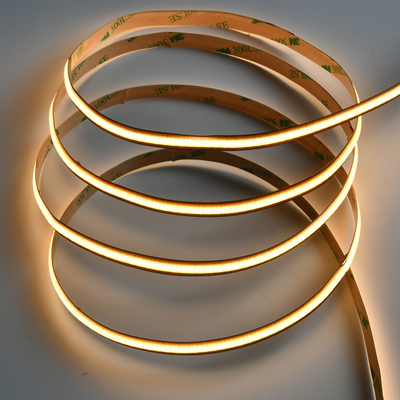

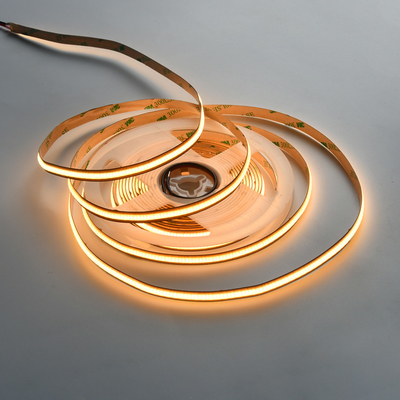

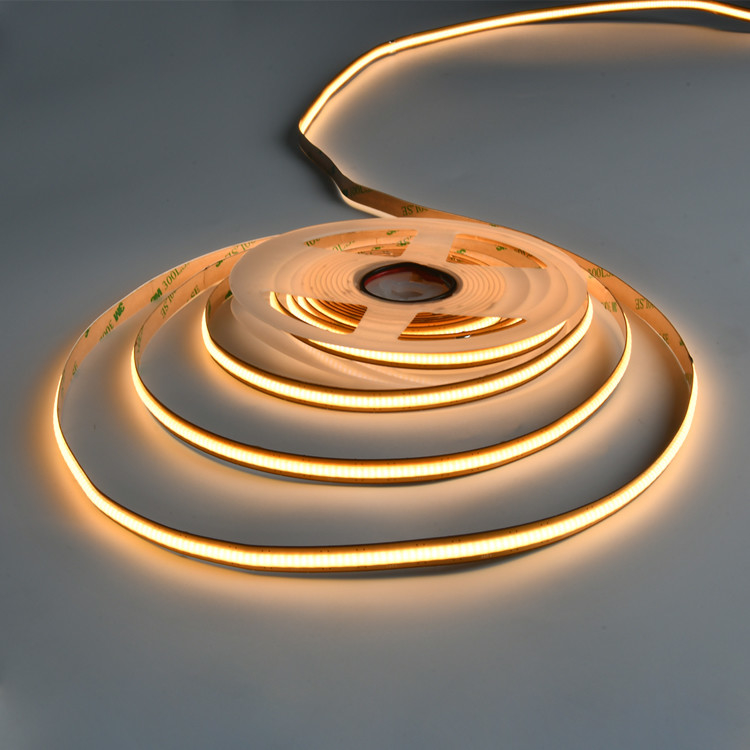

2023 Led Lighting New Design Free Cuttable Cob Led Strip DC12V DC24V
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS |
| Model Number: | ADS-YCOB-528X-12-8-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Packaging Details: | 5m(16.4ft) Per Roll |
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | Free Cuttable 528Chips/m COB LED Strip Lights | Model: | ADS-YCOB-528X-12-8-F |
|---|---|---|---|
| Voltage: | DC24V | LEDs Per Metre: | 528 |
| Watts Per Metre: | 10W | Color: | Single Color |
| IP Rating: | IP20/IP65/IP67/IP68 | Beam Angle: | 180° |
| Warranty: | 3 Years | PCB Width: | 8mm |
| High Light: | Cob Led Strip DC12V,Cob Led Strip DC24V,Free Cuttable Cob Led Strip |
||
Product Description
2023 Led Lighting New Design Free Cuttable Cob Led Strip DC12V DC24V
Benefits of Free Cuttable COB LED Strip
1. High Density LED Strip Free Cuttable Cob Led Strip
Hot spot lights of traditional LED strip SMD led strip are bad for eyes, chip on board LED strip emit uniform brightness, shines in one straight line, it emits perfect lighting even without LED channels.
2. More Flexible Light Strip
528 chips combines in one meter free cuttable dotless LED strip lights, the space between two chips is ultra narrow, you can bend arbitrarily the free cuttable cob dotless strip lights without any damages.
3. Free Cuttable COB LED Strip Lights
Free-cut COB LED strips allow for flexible customization. You can cut them to the desired length, ensuring a perfect fit for your specific lighting needs. This flexibility makes them suitable for a wide range of applications, from accent lighting to task lighting.
|
4. 180° Beam Angle COB Free Cuttable LED light strip emit 180 degree beam angle, traditional multi color strip lighting emit only 120 degree. More wide view to create a more uniform brightnss of best SMDstrip light. |
|
5.Types of COB LED Light Strip
The RGB+CCT light strips of ADLED have 12v addressable RGBCCT LED stripe, 24v RGB+CCT LED tape, RGBWW LED strip, RGBCCT COB LED strip, LED RGB CCT strip, WS2811 LED strip, RGBCCT COB LED strip.
LED Strip Supplier
|
All our best light strips are of UL, CE, RoHS certified products, guarantee a 3 or 5 years warranty. |
|
What is High Density Free Cuttable COB LED Strip?
A High Density Free Cuttable COB LED Strip refers to an LED strip that utilizes COB (Chip-on-Board) LED technology and has a high LED density. It is designed to provide a dense arrangement of LED chips on a single substrate, resulting in a powerful and uniform light output.
The "free cuttable" aspect means that the LED strip can be cut at specific intervals without causing damage to the individual LEDs or affecting their functionality. This allows for customization and flexibility in achieving the desired length for your lighting project.
Manufacturing ultra high density RGBCCT LED strip liminates the wire bonding process of SMD chips and soldering brackets compared with smart LED strip lights production, it greatly improved the stability of the product and better heat dissipation.
COB LED Strip Specifications:
| Model | ADS-YCOB-528X-12-8-F |
| LED type | COB (Chip On Board) |
| LEDs per metre | 528 |
| Operating voltage | DC12V/DC24V |
| Watts per metre | 10W |
| Color | 2700K/3000K/4000/6500K |
| IP rating | P20/IP65/IP67/IP68 |
| PCB width | 8mm |
| Cut points | Free Cuttable |
| Beam angle | 180° |
| Warranty | 3 Years |
| Certifications | UL/CE/RoHS/ErP |
| Package | 5m(16.4ft) per roll |
| Color changeable |
Single Color |
COB LED Strip Application:
High Density Free Cuttable COB LED Strips are often used in applications that require bright and even lighting, such as architectural lighting, retail displays, signage, and other indoor or outdoor lighting projects. The ability to cut the strip at specific points allows for precise customization and fitting to different spaces and lighting requirements.
*Indoor lighting: COB LED strips can be used in a variety of indoor lighting applications, such as under-cabinet lighting, cove lighting, and accent lighting. They can also be used as task lighting in workshops or kitchens.
*Outdoor lighting: COB LED strips are often used for outdoor lighting, such as for landscape lighting, pathway lighting, and security lighting. They are weather-resistant and can withstand exposure to the elements.
*Automotive lighting: COB LED strips can be used for automotive lighting, such as for headlights, taillights, and interior lighting.
*Signage: COB LED strips can be used to create illuminated signage for businesses or events.
*Entertainment: COB LED strips can be used for stage lighting, DJ lighting, and other entertainment applications.
*Grow lights: COB LED strips can be used for indoor gardening and hydroponics, as they provide the necessary spectrum of light for plant growth.
COB LED Strip FAQ:
Q: Why more and more people choose COB LED tape?
COB LED tape has many big advantages compared with SMD LED strip, such as perfect linear lighting effect, more flexibility, etc. With advanced craft, it can produce more perfect CRI and color temperature values.
Q: why should you buy from us not from other suppliers?
Over 10 years experience in lighting product with 10 years experience in LED technology, provide (OEM) and (ODM) product servicing.
World-wide automation facilities enhance productive and quality management.
Long term business with well-known buyers
Q: Is COB LED strip dimmable ?
Yes, you can dim these dimmable COB LED strip with a simple LED dimmer.
Q: How do you ship the goods and how long does it take to arrive?
For small orders, we usually ship by air. It usually takes 3-7 days to arrive.
For formal orders, usually is 15-18 days, shiping by air or sea.
Q: what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T; Paypal; Western Union
Language Spoken:English, Chinese
