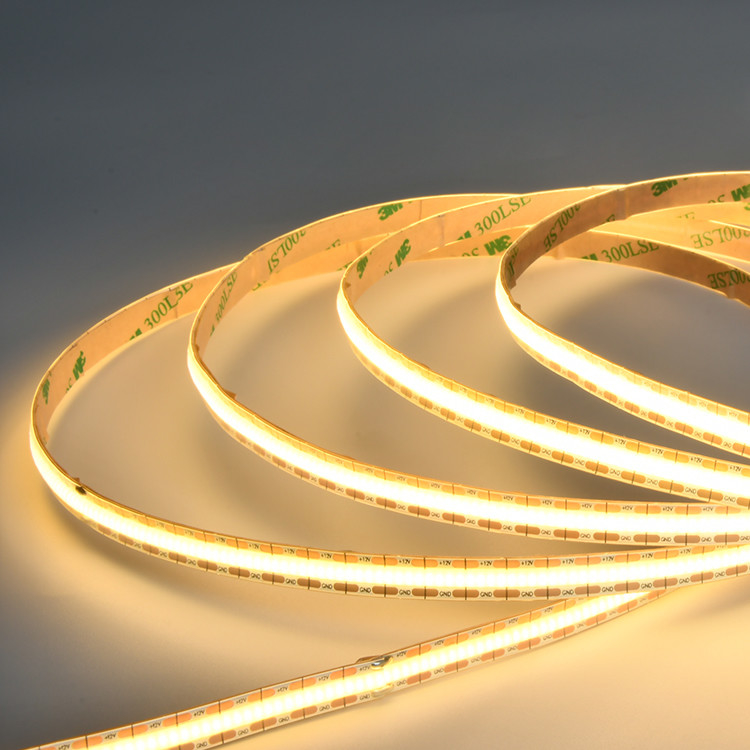

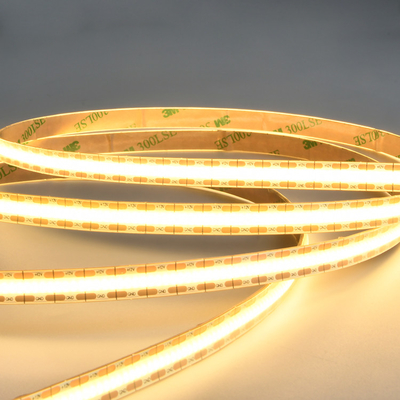

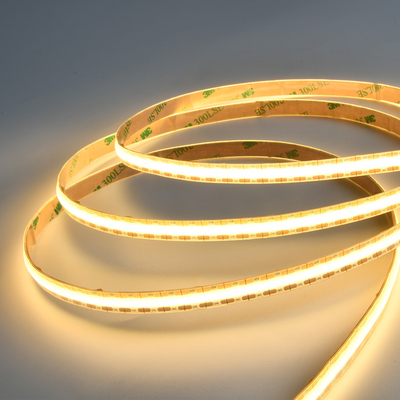

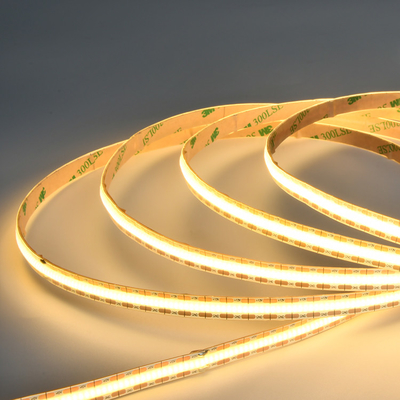

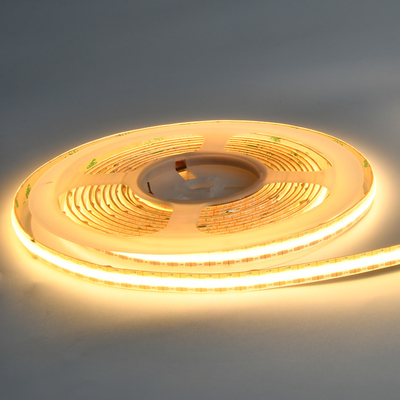

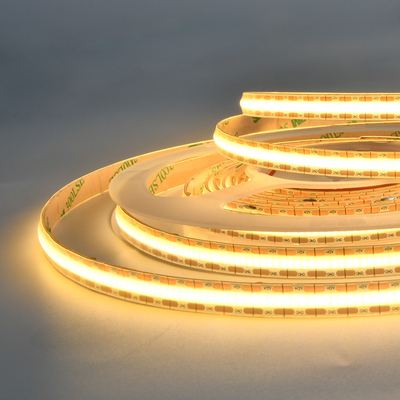

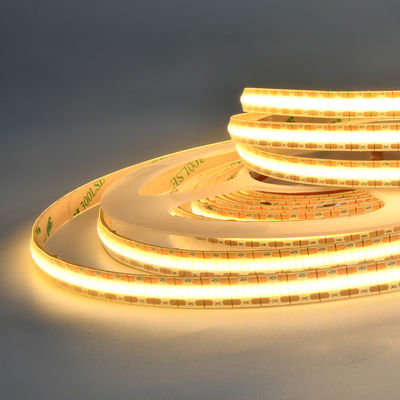

Mini Cut New Design 7mm Cutting Unit Cob Led Strip For Cabinet Decoration
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS |
| Model Number: | ADS-YCOB-528X-12/24-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Packaging Details: | 5m(16.4ft) Per Roll |
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | Mini Cut 528Chips/m COB LED Strip Lights | Model: | ADS-YCOB-528X-12/24-8 |
|---|---|---|---|
| Voltage: | DC24V | LEDs Per Metre: | 528 |
| Watts Per Metre: | 10W | Color: | Single Color |
| IP Rating: | IP20/IP65/IP67/IP68 | Beam Angle: | 180° |
| Warranty: | 3 Years | PCB Width: | 8mm |
| High Light: | 7mm Cob Led Strip,Cob Led Strip IP68,6500K Dotless Led Strip Lights |
||
Product Description
Mini Cut New Design 7mm Cutting Unit Cob Led Strip For Cabinet Decoration
Benefits of Mini Cut COB LED Strip
1. High Density LED Strip Mini Cut Cob Led Strip
Hot spot lights of traditional LED strip SMD led strip are bad for eyes, chip on board LED strip emit uniform brightness, shines in one straight line, it emits perfect lighting even without LED channels.
2. More Flexible Light Strip
528chips mini cut cob led stirp is flexible light strips are incredibly versatile and can be used in a wide range of applications. They can be easily bent, curved, or shaped to fit around corners, contours, or irregular surfaces. This flexibility allows for creative and customized lighting designs that are not easily achievable with other lighting options.
3. Mini Cut COB LED Strip Lights
Mini cut COB LED strips allow for flexible customization. You can cut them to the mini length, ensuring a perfect fit for your specific lighting needs. This flexibility makes them suitable for a wide range of applications, from accent lighting to task lighting.
|
4. 180° Beam Angle COB Free Cuttable LED light strip emit 180 degree beam angle, traditional multi color strip lighting emit only 120 degree. More wide view to create a more uniform brightnss of best SMDstrip light. |
|
5. Types of COB LED Light Strip
The cob light strips of ADLED have 12v addressable RGBCCT LED stripe, 24v RGB+CCT LED tape, RGBWW LED strip, RGBCCT COB LED strip, CCT cob led stirp, free cuttable cob led stirp, mini cut cob led strip, reel to reel cob led strip and so on.
LED Strip Supplier
|
All our best light strips are of UL, CE, RoHS certified products, guarantee a 3 or 5 years warranty. |
|
Why is choose Mini Cut COB LED Strip?
Mini cut light strips, also known as LED light strips, offer several advantages when it comes to furniture lighting. Here are some of the key benefits:
Flexibility: Mini cut light strips are highly flexible and can be easily bent or curved to fit around furniture corners, edges, and contours. This flexibility allows for seamless integration into various furniture designs, providing a custom lighting solution.
Easy installation: Mini cut light strips are designed for easy installation. They often come with adhesive backing, allowing you to easily attach them to furniture surfaces without the need for complex wiring or tools. Additionally, they can be cut at specific intervals, providing flexibility in length and ensuring a perfect fit for your furniture.
Dimmable options: Many LED light strips come with dimming capabilities, allowing you to adjust the brightness level to suit different activities or create different atmospheres. This versatility in lighting intensity adds to the overall functionality and aesthetic appeal of your furniture lighting.
What is High Density Mini Cut COB LED Strip?
Despite their small size, mini cut COB LED strips feature a high LED density. COB technology allows multiple LED chips to be densely packed on a single substrate, resulting in a concentrated and uniform light output. The high LED density ensures bright and even illumination, even in small spaces.
Manufacturing ultra high density RGBCCT LED strip liminates the wire bonding process of SMD chips and soldering brackets compared with smart LED strip lights production, it greatly improved the stability of the product and better heat dissipation.
COB LED Strip Specifications:
| Model | ADS-YCOB-528X-12/24-8 |
| LED type | COB (Chip On Board) |
| LEDs per metre | 528 |
| Operating voltage | DC12V/DC24V |
| Watts per metre | 10W |
| Color | 2700K/3000K/4000/6500K |
| IP rating | P20/IP65/IP67/IP68 |
| PCB width | 8mm |
| Cut points | 7.58mm/11.36mm |
| Beam angle | 180° |
| Warranty | 3 Years |
| Certifications | UL/CE/RoHS/ErP |
| Package | 5m(16.4ft) per roll |
| Color changeable |
Single Color |
COB LED Strip Application:
High Density Free Cuttable COB LED Strips are often used in applications that require bright and even lighting, such as architectural lighting, retail displays, signage, and other indoor or outdoor lighting projects. The ability to cut the strip at specific points allows for precise customization and fitting to different spaces and lighting requirements.
*Indoor lighting: COB LED strips can be used in a variety of indoor lighting applications, such as under-cabinet lighting, cove lighting, and accent lighting. They can also be used as task lighting in workshops or kitchens.
*Outdoor lighting: COB LED strips are often used for outdoor lighting, such as for landscape lighting, pathway lighting, and security lighting. They are weather-resistant and can withstand exposure to the elements.
*Automotive lighting: COB LED strips can be used for automotive lighting, such as for headlights, taillights, and interior lighting.
*Signage: COB LED strips can be used to create illuminated signage for businesses or events.
*Entertainment: COB LED strips can be used for stage lighting, DJ lighting, and other entertainment applications.
*Grow lights: COB LED strips can be used for indoor gardening and hydroponics, as they provide the necessary spectrum of light for plant growth.
COB LED Strip FAQ:
Q: Why more and more people choose COB LED tape?
COB LED tape has many big advantages compared with SMD LED strip, such as perfect linear lighting effect, more flexibility, etc. With advanced craft, it can produce more perfect CRI and color temperature values.
Q: Can you do custom-made?
A: Sure, ODM and OEM are welcomed. We have strong R&D capability, you can send us idea, draft, or samples, we will offer you quotation with drawing within 7 days.
Q: Do you have warranty for your cob led strip?
Yes. For example, we can provide 3~5 years warranty for our LED drivers. During the period, if customers have the approval showing product quality issues, Step will help customers to solve it.
Q: How about the Shipping Method?
DHL/UPS/TNT/Fedex and other air shipments and sea shipments are all workable. In one words, we could do any shipments you wanted.
Q: What can you buy from us?
LED Strip,LED Aluminum Profile,LED Linear Light,LED POWER SUPPLY,LED CONTROLLER
