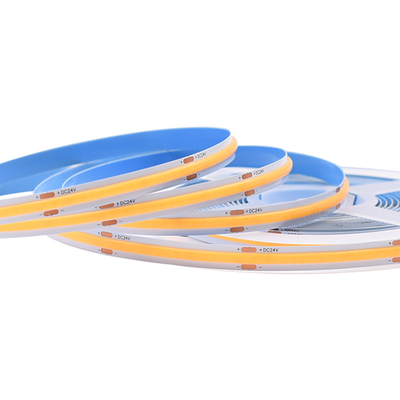

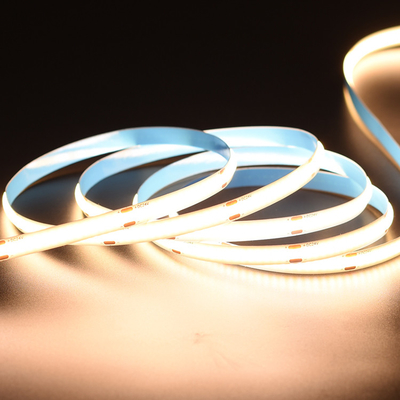

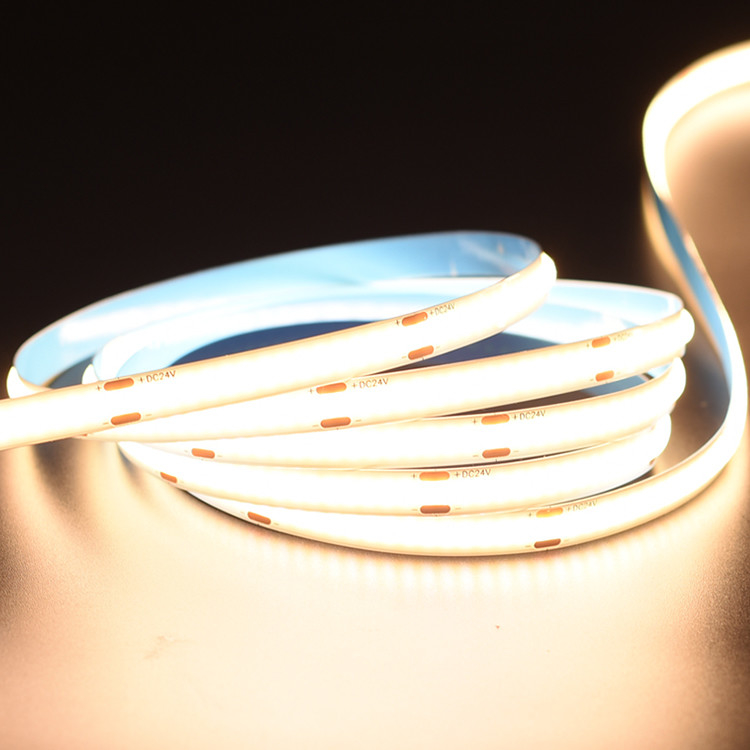

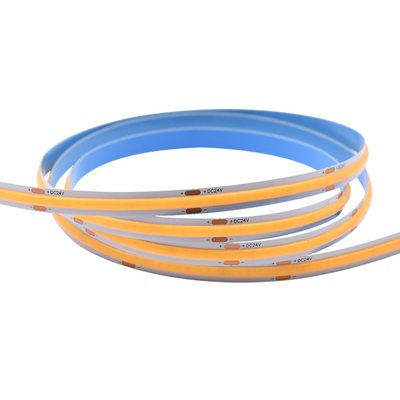

Reel To Reel LED Strip 480 LEDs/M COB (Chip-On-Board) Light For Cabinets, shelves lighting
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS |
| Model Number: | ADS-DCOB-480-24-R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Packaging Details: | 5m(16.4ft) Per Roll |
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Beam Angle: | 180° | CRI: | Ra>90 |
|---|---|---|---|
| Cutting Unit: | 100mm | LED Quantity: | 480LEDs/M |
| Lifespan: | 50,000 Hours | Light Color: | 2700K,3000K,4000K,6500K |
| Power: | 10W/M | Product Name: | COB LED Strip |
| Voltage: | DC12V | Warranty: | 3 Years |
| Waterproof Level: | IP20/IP65/IP67/IP68 | Working Temperature: | -20℃~50℃ |
| PCB Width: | 8mm | ||
Product Description
Reel To Reel LED Strip 480 LEDs/M COB (Chip-On-Board) Light For Cabinets, shelves lighting
Reel-to-reel PCB,no solder joints for whole reel,solder-free at every half meter,
which avoidproblems like false soldering,or inaccurate length because of lap solder that happens on regular LED strip lights.
1.Chips-on-board design, dot free even without any profiles
2. Excellent lighting with SDCM in 5-step, high efficiency that's up to 100Lm/W@CRI90.
3. Double layer 2oz PCB,for better flexibility, heat dissipation and voltage drop
Dimensions
Main features
Applications
--Linear Lighting,cove lighting,indirection lighting,back lighting
--Sign illumination,3D letters,AD boxes,light boxes
--Under cabinet,display case,accent decor,and automotive accents
Professional LED Strip Manufacturer
COB LED Strip FAQ:
Q: Why more and more people choose COB LED tape?
COB LED tape has many big advantages compared with SMD LED strip, such as perfect linear lighting effect, more flexibility, etc. With advanced craft, it can produce more perfect CRI and color temperature values.
Q: Can you link LED strip lights?
Yes, you can link LED strip lights easily. We can provide lots of LED strip accessory, 10mm LED strip connector, 8mm LED strip connector for 480chips COB LED strip.
Q: Is COB LED strip dimmable ?
Yes, you can dim these dimmable COB LED strip with a simple LED dimmer.
Q: Can you make waterproof COB LED strip?
Yes, we can make waterproof COB LED strip IP65, IP67, IP68 for different lighting applications.
Q: Do COB LED strip need aluminum profile for heat dissipation?
Yes, LED aluminum profile can help COB light strip to dissipate heat better and prolong the life of the COB light strip.
