High Powered Dual White COB CCT Strip Light 3000K-6500K Color Temperature uniform lighting UL Listed Tape Light
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL,CE |
| Model Number: | ADS-YCOB-640CCT-24 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500M |
|---|---|
| Packaging Details: | Static bag |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| LED Type: | COB LED | Working Voltage: | DC24V |
|---|---|---|---|
| Color: | CCT | Power: | 8W/M |
| Brightness: | 800LM/M | Efficiency: | 100LM/W |
| CRI: | 80+ | PCB Width: | 10MM |
| Strip Length: | 5m | Cutting Length: | 25MM |
| IP Rating: | IP20/IP65/IP67 | Working Temp.: | -20～40 ℃ |
Product Description

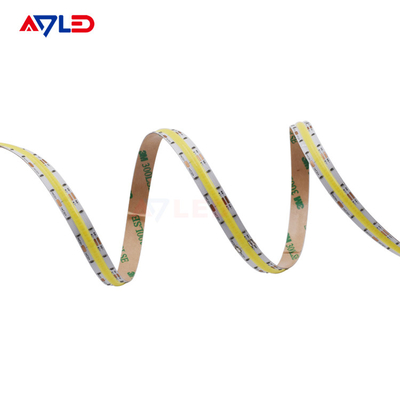

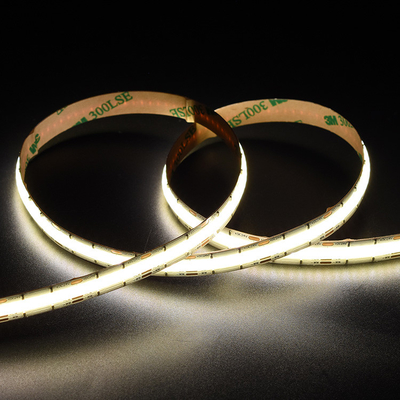

High Powered Dual White COB CCT Strip Light 3000K-6500K Color Temperature uniform lighting UL Listed Tape Light
DESCRIPTION
CCT tunable white light (color temperature adjustable between 2700 and 6500 K. It emits spotless illumination and operates on 24 V DC voltage. COB (chip on board) LED lights provide higher brightness than standard SMD or old-fashioned DIP LEDs Lumen Output - This technology allows at least 8 times more diodes to be placed in the same area.
Features

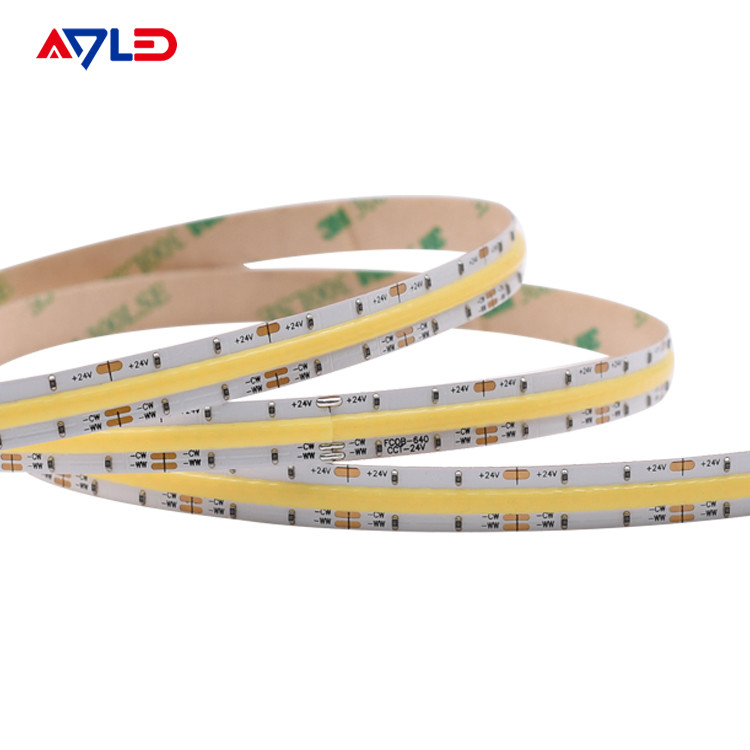

Chip-on-Board design, up to 640 pcs chips on single meter, even and uniformlighting.

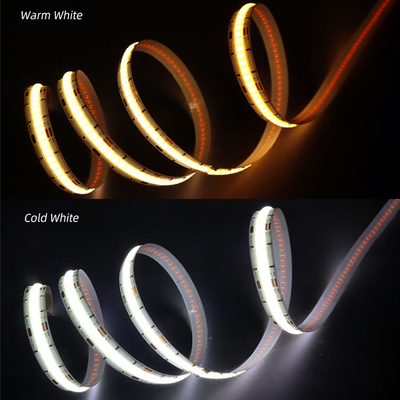

Dual white design, color changing from 3000K to 6500K.
Double layer 2oz PCB, balancing voltage drop, heat dissipation and flexibility.
IP20/IP65/IP67 optional
Technical parameters
CCT COB LED STRIP Light have 24V working voltage,color temperature is 3000K-6500K.
Installation Ways
The max running length is 2 meters, for over 2 meters please connect in parallel.
Make sure of the total watts of COB Strip lights is less than 80% of the power supply'smax output.
Match the polarities according to the mark ('+' and '-') in the PCB while connecting.
Application
Used in linear lights as lighting source; used for indoor decorations.
Questions
I need help designing my project, can you help?
Our team of LED experts can assist you with your design from start to finish. We'll provide you with a quote, wiring diagrams, and supporting documentation to help you get the results you deserve.
Can you customize this strap to a certain length?
We can custom cut your LED strips, neon lights and LED extrusions to exact specifications. Contact us for more information.
