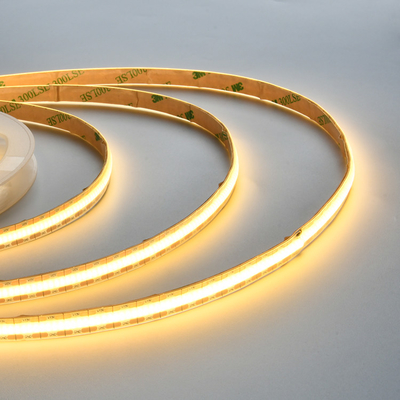

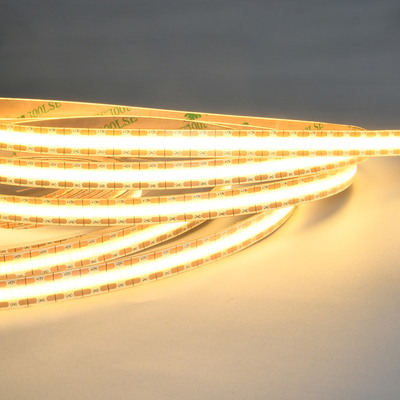

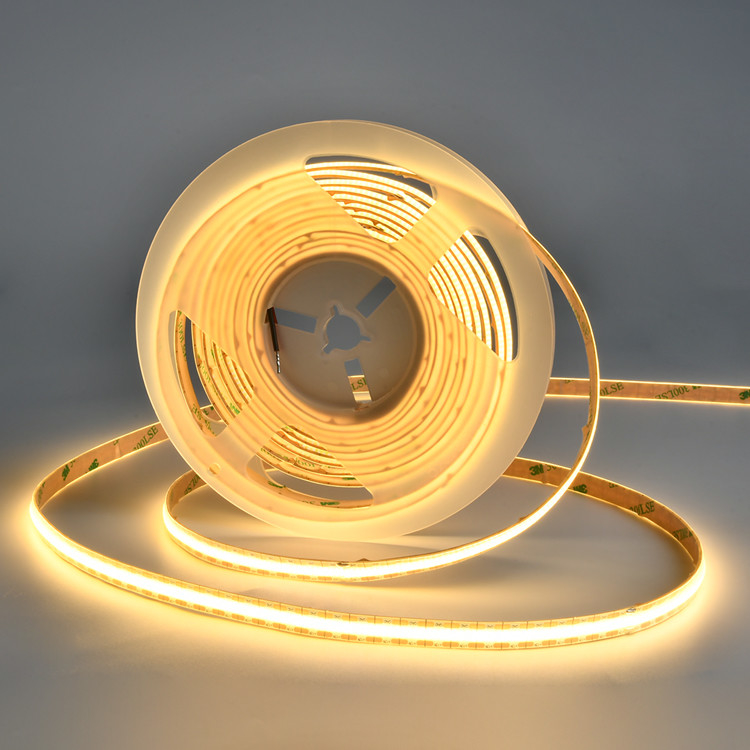

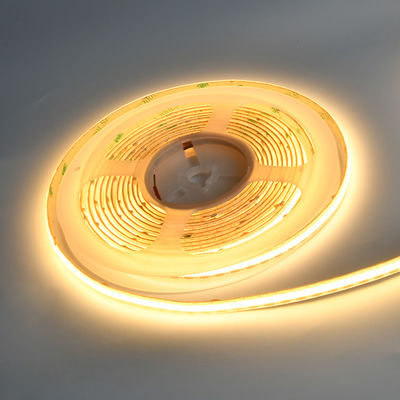

Balancing The Voltage Drop DC12V 528led/M COB Led Strip With 3000K Color Temperature IP20 Rated
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL,CE |
| Model Number: | ADS-DCOB-528-12-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500M |
|---|---|
| Packaging Details: | Static bag |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| LED Type: | COB LED | LED Quantity: | 528Leds |
|---|---|---|---|
| Power: | 10W/M | Color: | 2700K/3000K/4000-6000K |
| Efficiency: | 95-105Lm/W | Ra: | 80+ |
| PCB Width: | 8MM | Strip Length: | 5m |
| Cutting Length: | 7.58MM | IP Rating: | IP20 |
| Working Temp: | -20-40 °C | ||
| High Light: | 528led/M COB Led Strip,DC12V COB Led Strip 3000K,IP20 COB Led Light |
||
Product Description
Balancing the Voltage Drop DC12V 528led/m COB Led Strip Light with 3000K Color Temperature IP20 Rated
Description
Balancing the Voltage Drop DC12V 528led/m COB Led Strip Light is an LED light strip with very soft linear light and no spots. Monochrome but we can provide color temperatures of 2700K, 3000K, 4000K-6000K.Balancing the Voltage Drop DC12V 528led/m COB Led Strip Light have 528 LEDs/m, 12V, 10W/M.Each roll comes in 5 meters and can be cut freely - Small increments of LED strips can be cut freely to the desired length with minimal shadowing.
Features
Chip-on-board design, more chips on board reaches even and uniform lighting.
Up to 528 chips, only 1.89mm distance between chips.
Only 7.58mm cutting length, suitable for more applications.
Double layer 2oz PCB, balancing the voltage drop, heat dissipation and flexibility.
IP20/IP54/IP65/IP67 optional.
Dimensions
Balancing the Voltage Drop DC12V 528led/m COB Led Strip Light only 7.58mm cutting length, suitable for more applications.Can better fit the length you need.
Technical parameters
Temperature Curve
The following curve based on 30 minutes testing data. The Temp. changes after powering within30minutes.
The x-axis indicates the minutes from 1 minutes to 30 minutes.
The y-axis indicates the changes of temperatures in Glue, PCB and Room.
Installation Ways
The max running length is 1 meters, for over 1 meters please connect in parallel.
Make sure of the total watts of COB Strip lights is less than 80% of the power supply'smax output.
Match the polarities according to the mark ('+' and '-') in the PCB while connecting.
Package
Applications
Used in linear lights as lighting source; used for indoor decorations.
