High Density COB LED Strip Light 630LEDs/M RGB DC12V IP20 Rated With UL Listed
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL,CE |
| Model Number: | ADS-DCOB-630RGB-12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500M |
|---|---|
| Packaging Details: | Static bag |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| LED Type: | COB LED | LED Quantity: | 630Leds |
|---|---|---|---|
| Working Voltage: | DC12V | Color: | R/G/B/Mix |
| PCB Width: | 10MM | Cutting Length: | 71.42MM |
| Strip Length: | 5m | IP Rating: | IP20 |
| Working Temp.: | -20～40 ℃ | Warranty: | 3 Years |
| High Light: | 630LEDs/M RGB Strip Light,UL COB LED Strip Light,IP20 DC12V COB LED Strip |
||
Product Description

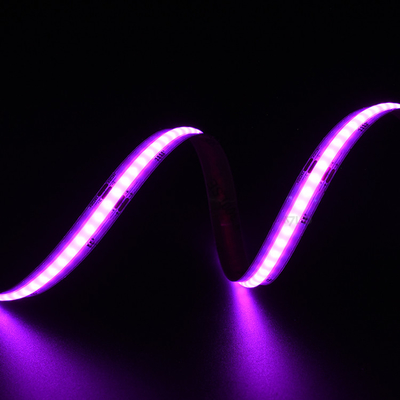

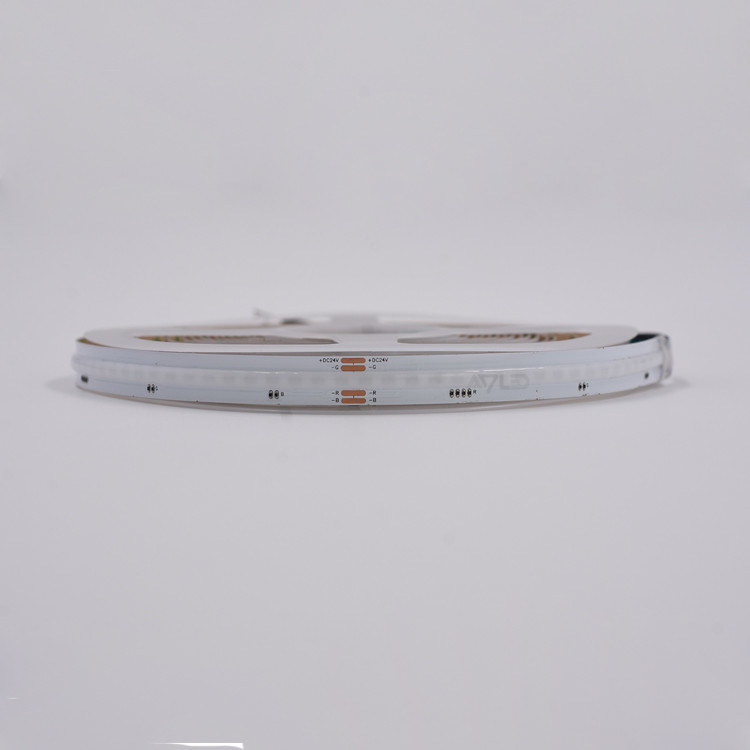

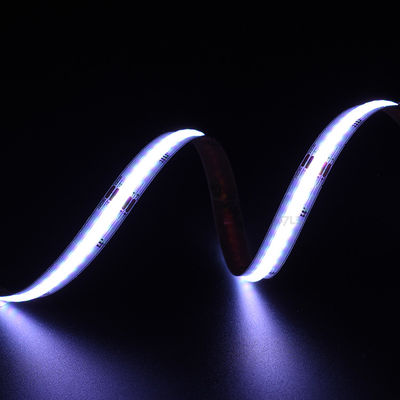

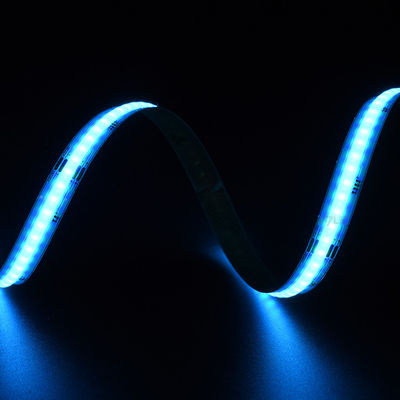

COB LED Strip Light 630LEDs/m RGB DC12V Non-waterproof IP20 Rated High LED Density With UL Listed
Description
The 630 RGB transparent type is a COB strip light that uses a placement machine to place the LED chip directly on the strip board. The fluorescent gel is evenly applied in a dome shape on the top surface of the mounted ultra-fine pitch LEDs. When turned on, the LED dots are unobtrusive and provide straight lines of light. Since it is an RGB type, full colors can be expressed without limitations.
Features
Chips-on-board design, dot-free even without any profiles.
High LED density, only 1.59mm distance between each LEDs.
Double layer FPC, balancing the voltage dropping, heat dissipation and flexibility.
Compatible with most of the RGB controllers in the markets.
Dimensions
Technical parameters
Stronger Backing Adhensive
Applications
Linear Lighting,cove lighting,indirection lighting,back lighting.
Sign illumination,3D letters,AD boxes,light boxes.
Under cabinet,display case,accent decor,and automotive accents.
About US
Founded in 2013, ADLED is a high-end LED strips and LED modules supplier headquatered in Shenzhen, China.
ADLED has 300 staff working in a 12000sqm dust-free workshop, 15 professional R&D members, 30 experienced QC members to provide customization & quality products.
Our wide range of LED strips and LED modules includes high CRI LED strip, COB LED strip, single color LED strip, RGB LED strip, tunable white LED strip, bendable LED strip, waterproof LED strip, neon LED strip, light bars for LED fabric frame, bar light for LED light box, LED module lights, SMD LED module, LED strip connector, LED strip profile, LED strip controller, and more.
Certificates
