COB Led Strip Light 320led/m DC5V 3000K IP20/IP65/IP67 Rated With 3 years warranty Uniform Lighting
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL,CE,ROHS |
| Model Number: | ADS-YCOB-320-5V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500M |
|---|---|
| Packaging Details: | Static bag |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| LED Type: | COB LED | LED Quantity: | 320Leds |
|---|---|---|---|
| Working Voltage: | DC5V | Power: | 5W/M |
| Ra: | 80+/90+ | CCT: | 2700K/3000K/4000-6000K |
| PCB Width: | 8MM | Cutting Length: | 12.5MM |
| Strip Length: | 1m | IP Rating: | IP20/IP65/IP67 |
| Working Temp.: | -20～40 ℃ | Warranty: | 3 Years |
| Beam Angle: | 180 | ||
Product Description
COB Led Strip Light 320led/m DC5V 3000K IP20/IP65/IP67 Rated With 3 years warranty Uniform Lighting
Description

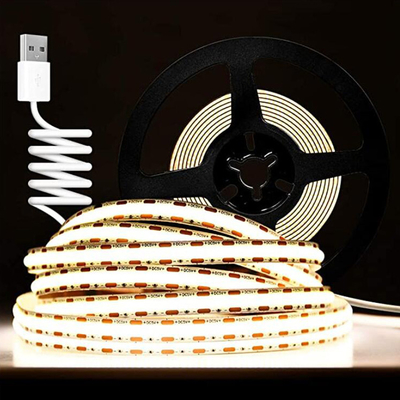

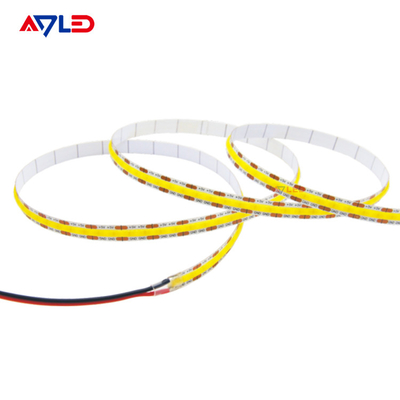

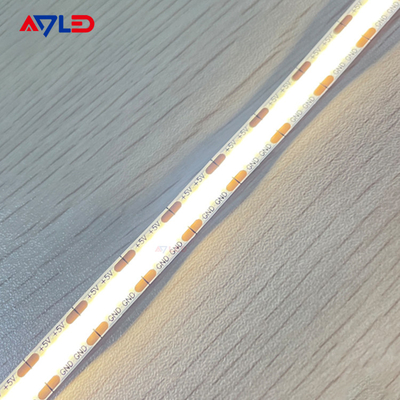

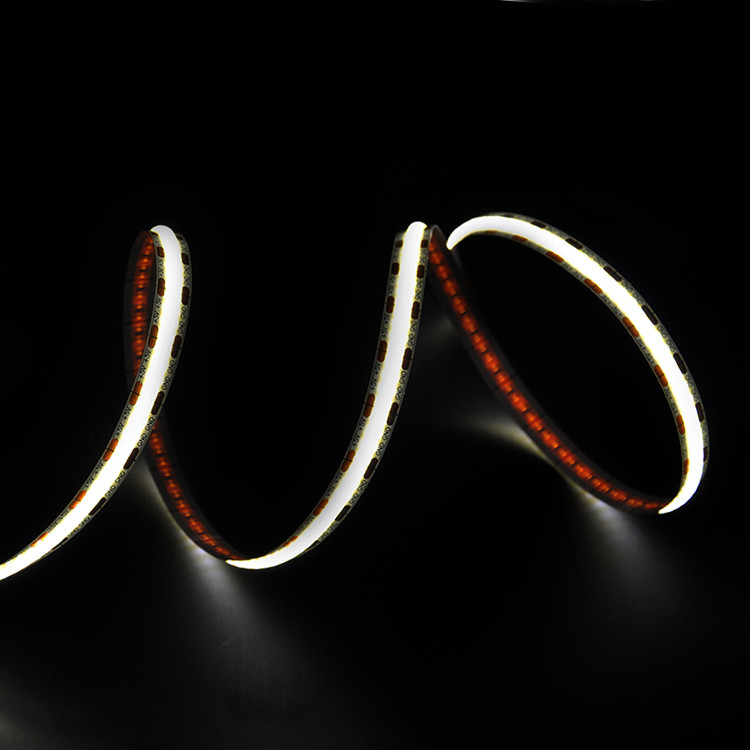

ADLED 320LEDS DC5V COB light strip, -USB-Powered Long-Life LED Strip. 320 lamp beads per meter, 3.125mm distance between chips. It can be cut every 12.5mm, low voltage and light strips can be cut, people can use it in the fields of TV, computer, desktop, laptop, tablet, tab, etc. DIY decoration lighting.
Features
Chip-on-board design, more chips on PCB reaches a more even and uniformlighting effects.
Up to 320 chips on single meter, 3.125mm distance between chips.
Customized 3V input, easy to power with button cell battery.
Double layer 2oz PCB, balancing the voltage dropping, heat dissipation and flexibility.
Dimensions
Technical parameters
Curve
The above curve based on 30 minutes testing data. The Temp. changes after powering within30minutes.
The x-axis indicates the minutes from 1 minutes to 30 minutes.
The y-axis indicates the changes of temperatures in Glue, PCB and Room
Installation on Ways
The max running length is 2 meters, for over 2 meters please connect in parallel.
Make sure of the total watts of COB Strip lights is less than 80% of the power supply's.
Match the polarities according to the mark ('+' and '-') in the PCB while connecting.
Applications
--USB-Powered Long-Life LED Strip , Powered by any devices with output 5VUSBport, such as TV,computer, desktop, laptop, tablet, tab, etc. DIY decoration lighting.
