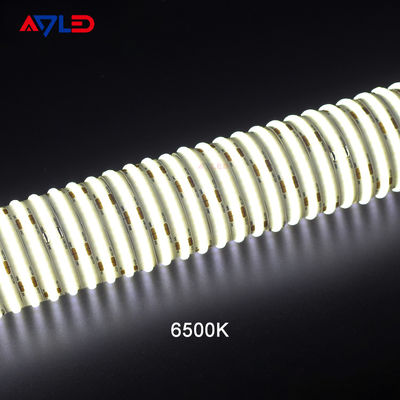

336 LEDs/M Flexible COB LED Strip Chip On Board Light For Cabinets, Shelves Lighting
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS |
| Model Number: | ADS-DCOB-336 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Packaging Details: | 5m(16.4ft) Per Roll |
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Beam Angle: | 180° | CRI: | Ra>90 |
|---|---|---|---|
| Cutting Unit: | 45.45M | LED Quantity: | 336LEDs/M |
| Lifespan: | 50,000 Hours | Light Color: | 2700K,3000K,4000K,6500K |
| Power: | 8W/M | Product Name: | COB LED 336LEDs/M Strip |
| Voltage: | DC12V/24V | Warranty: | 3 Years |
| Waterproof Level: | IP20/IP65/IP67/IP68 | Working Temperature: | -20℃~50℃ |
| PCB Width: | 8mm | ||
| High Light: | 336 LEDs/M COB LED Strip,8W/M COB LED Strip,IP65 Chip On Board Light |
||
Product Description
High Density 336 LEDs/M Flexible COB LED Strip Light(Chip-On-Board) Light For Cabinets, shelves lighting
* Big beam angle,no dark area,flexible line source with good heat dissipation
* Inverted COB gold-free technology
* Ra>90,cuttable and re-connectable
Description
"Super Bright" DC12V 336LEDs/m 5M 8mmCOB LED Light Strip with Flexible Tip Compared with traditional SMD light strips,COB light strips have precise light-emitting units to prevent the light from stopping midway, creating a bright, soft,and uniform effect of light.
COB has a soft and dense flat surface that can be bent freely.The strong adhesive on the back makes it easy to install on the wall or any smooth,clean surface.
You can also use scissors to cut to any length along the cutting point or work fine. Safe, energy-saving and durable: COB monochrome series LED light strips are more energy-saving. Dimmable and durable, with a lifespan of over 50,000 hours.
We offer a 2-year worry-free warranty and 24-hour customer service. The light is softer and more uniform than ordinary LED light strips, and safer for the eyes.
High color rendering index and good lighting effect. It does not contain ultraviolet or infrared rays, mercury, lead and other heavy metals, and is environmentally friendly. The light decay rate is less than 3% after 1000 hours and less than 30% after 3500 hours.
Features
Chip-on-board design, up to 336 chips on single meter reaches even and uniformlighting.
Only 2.97mm distance between chips, 62.5mm cutting length.
New circuit design to reduce brightness difference from beginning and ending.
Double layyer 2oz PCB, balancing voltage dropping, heat dissipation and flexibility
Dimensions
Technical parameters
Installation Ways
The max running length is 5 meters, for over 5 meters please connect in parallel.
Make sure of the total watts of COB Strip lights is less than 80% of the power supply's max output.
Match the polarities according to the mark ('+' and '-') in the PCB while connecting.
Applications
sed in linear lights as lighting source; used for indoor decorations.
Package
About US
Founded in 2013, ADLED is a high-end LED strips and LED modules supplier headquatered in Shenzhen, China.
ADLED has 300 staff working in a 12000sqm dust-free workshop, 15 professional R&D members, 30 experienced QC members to provide customization & quality products.
Our wide range of LED strips and LED modules includes high CRI LED strip, COB LED strip, single color LED strip, RGB LED strip, tunable white LED strip, bendable LED strip, waterproof LED strip, neon LED strip, light bars for LED fabric frame, bar light for LED light box, LED module lights, SMD LED module, LED strip connector, LED strip profile, LED strip controller, and more.
Professional LED Strip Manufacturer
COB LED Strip FAQ:
Q: Why more and more people choose COB LED tape?
COB LED tape has many big advantages compared with SMD LED strip, such as perfect linear lighting effect, more flexibility, etc. With advanced craft, it can produce more perfect CRI and color temperature values.
Q: Can you link LED strip lights?
Yes, you can link LED strip lights easily. We can provide lots of LED strip accessory, 10mm LED strip connector, 8mm LED strip connector for 480chips COB LED strip.
Q: Is COB LED strip dimmable ?
Yes, you can dim these dimmable COB LED strip with a simple LED dimmer.
Q: Can you make waterproof COB LED strip?
Yes, we can make waterproof COB LED strip IP65, IP67, IP68 for different lighting applications.
Q: Do COB LED strip need aluminum profile for heat dissipation?
Yes, LED aluminum profile can help COB light strip to dissipate heat better and prolong the life of the COB light strip.
