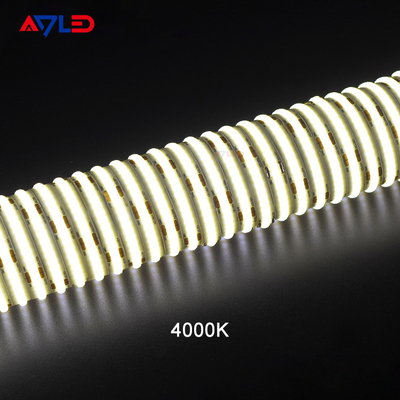

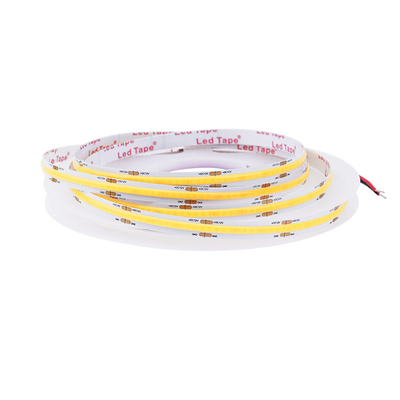

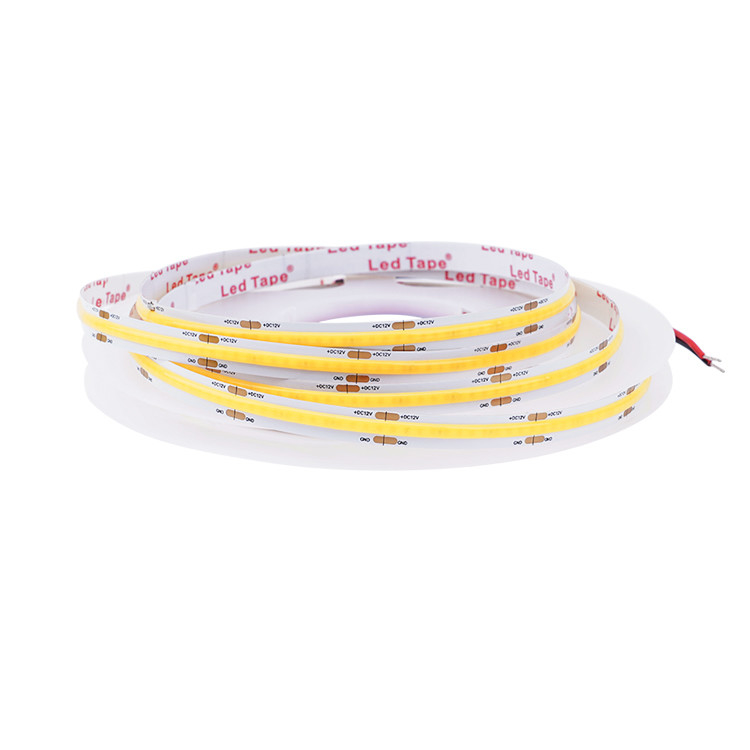

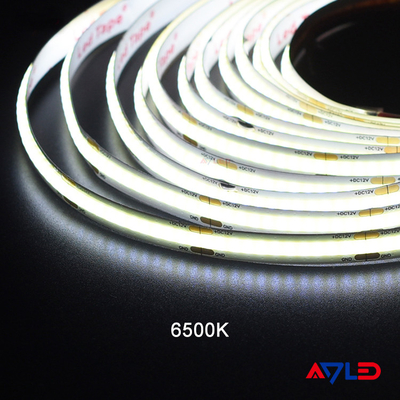

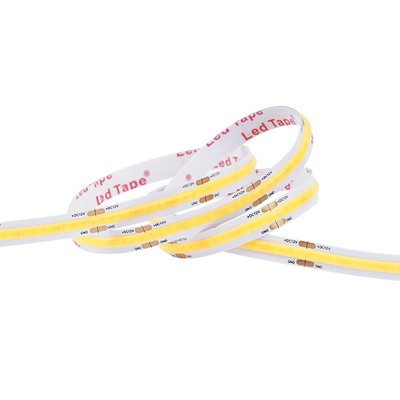

336LED High Density COB LED Strip Light 24VDC Flexible For Lighting Project
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS |
| Model Number: | ADS-YCOB-336 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Packaging Details: | 5m(16.4ft) Per Roll |
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | 360 LEDS/M COB LED Strip Light | Model: | ADS-YCOB-336 |
|---|---|---|---|
| Watts Per Metre: | 8W | Voltage: | DC12V/24V |
| LEDs Per Metre: | 336 | Color: | 2700K/3000K/4000K/6500K |
| IP Rating: | IP20/IP67 | Warranty: | 2 Years |
| Beam Angle: | 180° | PCB Width: | 8mm |
| High Light: | 336LED COB LED Strip,Flexible COB LED Strip 24VDC,8W IP67 COB LED Strip |
||
Product Description
336LED High Density COB LED Strip LED LED Strip Light COB LED Strip 24VDC Flexible Strip for Lighting Project
1. High Brightness
The COB LED technology allows for a large number of LEDs to be densely packed on a single chip, resulting in a higher light output. With 336 LEDs per meter, the strip can produce a significant amount of light, making it suitable for applications where bright illumination is required.
2. Long Lifespan
COB LED technology is known for its longevity and durability. With proper heat dissipation and quality components, COB LED strips can have a long operational lifespan, reducing the need for frequent replacements.
3. Uniform Lighting COB LED Strip Lights
COB LEDs are designed to provide uniform lighting across the entire strip. With 336LEDs closely packed together, you can expect consistent illumination without visible dark spots or uneven brightness.
|
4. 180° Beam Angle
|
|
5.Energy Efficiency
LED technology is known for its energy efficiency, and COB LEDs are no exception. The 336 LED COB strip can provide ample illumination while consuming less power compared to traditional lighting sources, leading to energy savings and lower electricity bills.
LED Strip Supplier
|
All our best light strips are of UL, CE, RoHS certified products, guarantee a 3 or 5 years warranty. |
|
What is COB LED Strip?
The Full Name of the COB Led Strip is: Chip on Board, Which is a Method of Directly Binding the Led Chips to the PCB Board.
The Ordinary Light Strip is Made of Chip on the frame, and Made Into SMD. Then Put the Smd on the PCB. COB led strip Saves a Lot of Space on PCB and Cost.
Because It Saves Space, More LED Can Be Added. Generally, The 2835 Strip Light Can Hold a Maximum of 240 SMD Per Meter, and the COB Can Hold 640 Chips or More.
And Because the Cost of Mounting the Chip on the frame is Saved, the Price of the COB Led Strip is Much Cheaper Than the Same Number of Led Strips.
COB LED Strip Specifications:
| Model | ADS-YCOB-336 |
| LED type | COB (Chip On Board) |
| LEDs per metre | 336 |
| Operating voltage | DC12V/DC24V |
| Watts per metre | 8W |
| Color | 2700K/3000K/4000K/6500K |
| IP rating | IP20/IP67 |
| PCB width | 8mm |
| Cut points | 62.5mm |
| Beam angle | 180° |
| Warranty | 2Years |
| Certifications | UL/CE/RoHS/ErP |
| Package | 5m(16.4ft) per roll |
| Color changeable |
Color jumping or gradient controlled by LED COB tape controller |
COB LED Strip Application:
• Interior lighting
• Under-cabinet lighting
• General illumination
• Entertainment lighting
• Stage lighting
• Task lighting
• Decorative lighting
• Ceiling lighting
COB LED Strip FAQ:
Q: Why more and more people choose COB LED tape?
COB LED tape has many big advantages compared with SMD LED strip, such as perfect linear lighting effect, more flexibility, etc. With advanced craft, it can produce more perfect CRI and color temperature values.
Q: Can you link LED strip lights?
Yes, you can link LED strip lights easily. We can provide lots of LED strip accessory, 10mm LED strip connector, 8mm LED strip connector for 528chips COB LED strip.
Q: Is COB LED strip dimmable ?
Yes, you can dim these dimmable COB LED strip with a simple LED dimmer.
Q: Can you make waterproof COB LED strip?
Yes, we can make waterproof COB LED strip IP65, IP67, IP68 for different lighting applications.
Q: Do COB LED strip need aluminum profile for heat dissipation?
Yes, LED aluminum profile can help COB light strip to dissipate heat better and prolong the life of the COB light strip.
