504leds/M COB LED Strip DC12V/24V 6500K IP20 10mm PCB Width Blue Adhensiven For Linear Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL,CE,ROHS |
| Model Number: | ADS-YCOB-504 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500M |
|---|---|
| Packaging Details: | Static bag |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| LED Type: | COB LED | LED Quantity: | 504Leds |
|---|---|---|---|
| PCB Width: | 10MM | Ra: | 80+ |
| Power: | 12W/M | Working Voltage: | DC12V/24V |
| Color: | 2700K/3000K/4000K/6500K | Strip Length: | 5m |
| Cutting Length: | 17.86mm For DC12V, 41.67mm For DC24V | IP Rating: | IP20 |
| Working Temp.: | -20～40 ℃ | Lifespan: | 50000H |
| Warranty: | 2 Years | ||
| High Light: | IP20 12v LED Light Strips,COB LED Strip DC12V 6500K,504leds/M COB Strip Light |
||
Product Description
504leds/m COB Led Strip Light DC12V/24V 6500K IP20 Rated 10mm PCB Width Blue Adhensiven For Linear Lights
Description

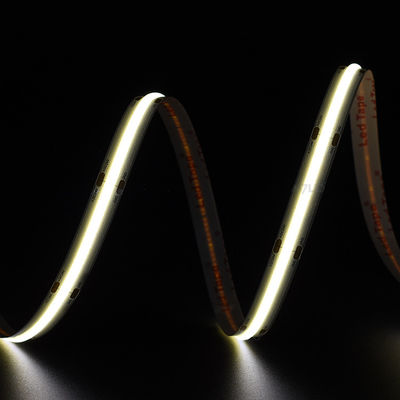

ADLED LIGHT 504 COB LED strip light Blue Adhensive Backing. The light strip is composed of 504 lamp beads per meter, which is bright and has no spots. Seamless lighting makes it easier for people to design the desired atmosphere. 10mm PCB board width, the light strip can be cut. 17.86mm cutting length for DC12V, 41.67mm cutting length for DC24V.
Features
Chip-on-board design, up to 504 chips on single meter reaches even and uniformlighting.
17.86mm cutting length for DC12V,41.67mm cutting length for DC24V.
New circuit design to reduce brightness difference from beginning and ending.
Double layyer 2oz PCB, balancing voltage dropping, heat dissipation and flexibility.
Dimensions
Technical parameters
Temperature Curve
￭ The following curve based on 30 minutes testing data. The Temp. changes after powering within30minutes.
￭ The x-axis indicates the minutes from 1 minutes to 30 minutes.
￭ The y-axis indicates the changes of temperatures in Glue, PCB and Room.
Installation Ways
￭ The max running length is 5 meters, for over 5 meters please connect in parallel.
￭ Make sure of the total watts of COB Strip lights is less than 80% of the power supply's max output.
￭ Match the polarities according to the mark ('+' and '-') in the PCB while connecting.
Applications
--Used in linear lights as lighting source; used for indoor decorations.
