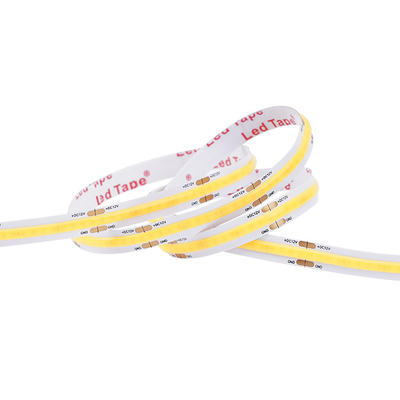

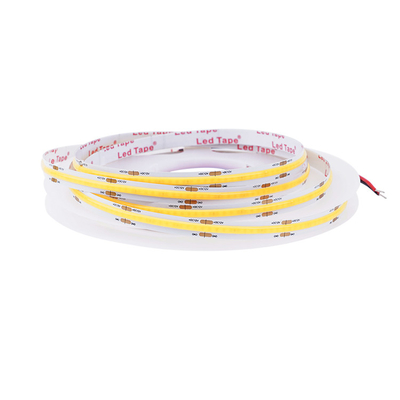

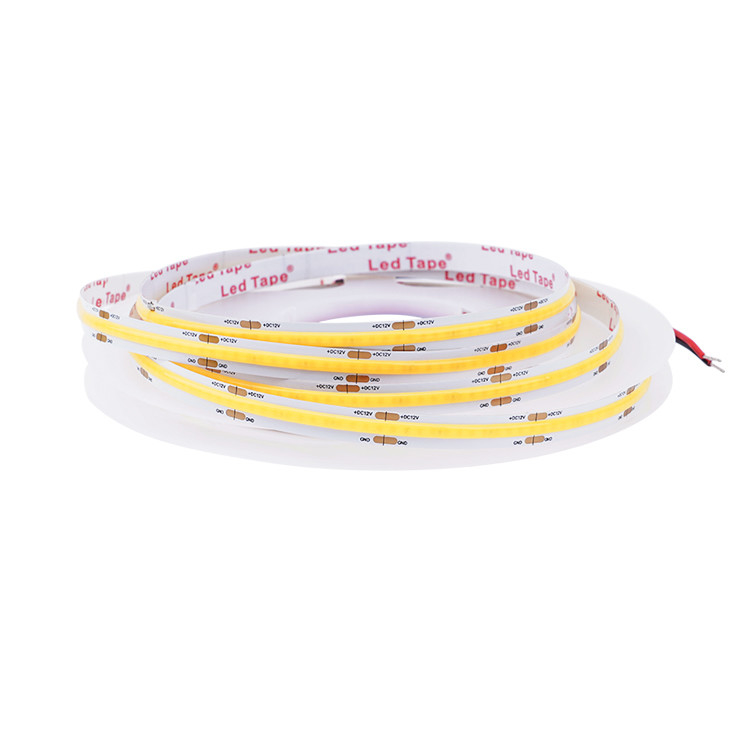

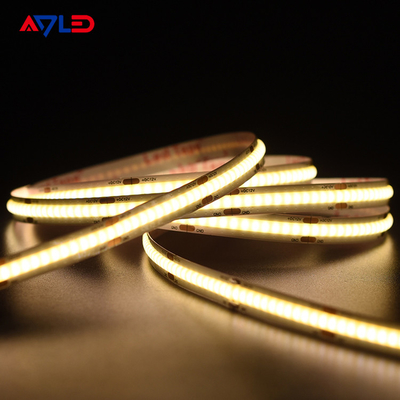

Super Bright White LED Strip Lights 336LEDs/M DC 24V COB LED Strip Light
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL/CE/RoHS |
| Model Number: | ADS-YCOB-336 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100M |
|---|---|
| Packaging Details: | 5m(16.4ft) Per Roll |
| Delivery Time: | 7days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 100000M |
|
Detail Information |
|||
| Name: | 336 LEDS/M COB LED Strip Light | Model: | ADS-YCOB-336 |
|---|---|---|---|
| Watts Per Metre: | 8W | Voltage: | DC12V/24V |
| LEDs Per Metre: | 336 | Color: | 2700K/3000K/4000K/6500K |
| IP Rating: | IP20/IP67 | Warranty: | 2 Years |
| Beam Angle: | 180° | PCB Width: | 8mm |
| High Light: | LED Strip Lights 336LEDs/M,DC24V COB LED Strip Light,8W IP20 LED Strip Lights |
||
Product Description
Whosale Super Bright White LED Strip Lights 336LEDs/M DC 24V COB LED Strip Light
1. High Brightness:
With 336 LEDs per meter, COB LED strip lights can provide a high level of brightness, making them ideal for applications where strong illumination is required.
2. Uniform Lighting:
The close proximity of the LEDs in COB strips ensures uniform lighting without visible dark spots or unevenness. This makes them suitable for applications where consistent illumination is desired, such as architectural lighting or displays.
3. Compact Size:
The high LED density allows COB LED strip lights to be compact in size, making them easier to install in tight spaces or areas with limited mounting options.
|
4. 180° Beam Angle
|
|
5. Energy Efficiency:
COB LED technology is generally energy-efficient, meaning that even with a high LED density, these strips can still consume less power compared to traditional lighting sources while providing similar or higher levels of brightness.
LED Strip Supplier
|
All our best light strips are of UL, CE, RoHS certified products, guarantee a 3 or 5 years warranty. |
|
What is COB LED Strip?
The Full Name of the COB Led Strip is: Chip on Board, Which is a Method of Directly Binding the Led Chips to the PCB Board.
The Ordinary Light Strip is Made of Chip on the frame, and Made Into SMD. Then Put the Smd on the PCB. COB led strip Saves a Lot of Space on PCB and Cost.
Because It Saves Space, More LED Can Be Added. Generally, The 2835 Strip Light Can Hold a Maximum of 240 SMD Per Meter, and the COB Can Hold 640 Chips or More.
And Because the Cost of Mounting the Chip on the frame is Saved, the Price of the COB Led Strip is Much Cheaper Than the Same Number of Led Strips.
COB LED Strip Specifications:
| Model | ADS-YCOB-336 |
| LED type | COB (Chip On Board) |
| LEDs per metre | 336 |
| Operating voltage | DC12V/24V |
| Watts per metre | 8W |

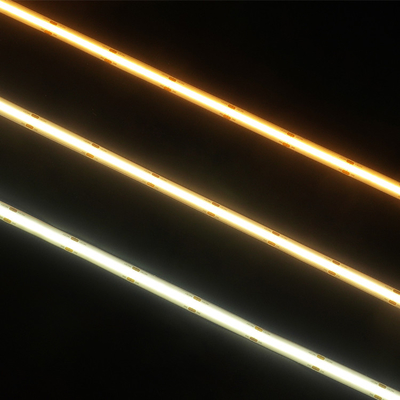

| Color | 2700K/3000K/4000K/6500K |
| IP rating | IP20/IP67 |
| PCB width | 8mm |
| Cut points | 62.5mm |
| Beam angle | 180° |
| Warranty | 2Years |
| Certifications | UL/CE/RoHS/ErP |
| Package | 5m(16.4ft) per roll |
| Color changeable |
Color jumping or gradient controlled by LED COB tape controller |
COB LED Strip Application:
• Interior lighting
• Under-cabinet lighting
• General illumination
• Entertainment lighting
• Stage lighting
• Task lighting
• Decorative lighting
• Ceiling lighting
COB LED Strip FAQ:
Q: Why more and more people choose COB LED tape?
COB LED tape has many big advantages compared with SMD LED strip, such as perfect linear lighting effect, more flexibility, etc. With advanced craft, it can produce more perfect CRI and color temperature values.
Q: Can you link LED strip lights?
Yes, you can link LED strip lights easily. We can provide lots of LED strip accessory, 10mm LED strip connector, 8mm LED strip connector for 528chips COB LED strip.
Q: Is COB LED strip dimmable ?
Yes, you can dim these dimmable COB LED strip with a simple LED dimmer.
Q: Can you make waterproof COB LED strip?
Yes, we can make waterproof COB LED strip IP65, IP67, IP68 for different lighting applications.
Q: Do COB LED strip need aluminum profile for heat dissipation?
Yes, LED aluminum profile can help COB light strip to dissipate heat better and prolong the life of the COB light strip.
