CE UL RoHS COB LED Strip Light DC 12V 24V 504LEDs/M 16.4ft 3000K 4000K 6500K
Product Details:
Place of Origin: | China |
Brand Name: | ADLED |
Certification: | UL/CE/RoHS |
Model Number: | ADS-YCOB-504 |
Payment & Shipping Terms:
Minimum Order Quantity: | 100M |
---|---|
Packaging Details: | 5m(16.4ft) Per Roll |
Delivery Time: | 7days |
Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
Supply Ability: | 100000M |
Detail Information |
|||
Name: | 504 LEDS/M COB LED Strip Light | Model: | ADS-YCOB-504 |
---|---|---|---|
Watts Per Metre: | 12W | Voltage: | DC12V |
LEDs Per Metre: | 504 | Color: | 2700K/3000K/4000K/6500K |
IP Rating: | IP20/IP67 | Warranty: | 2 Years |
Beam Angle: | 180° | PCB Width: | 10mm |
Highlight: | DC 12V COB LED Strip,COB LED Strip 6500K,504LEDs/M COB LED Light |
Product Description

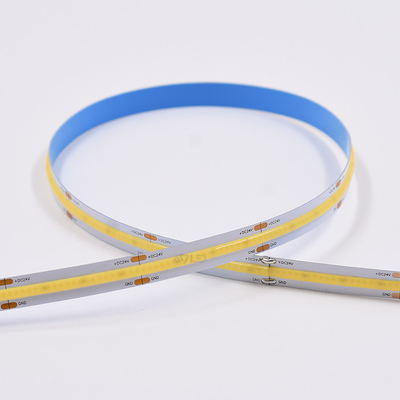

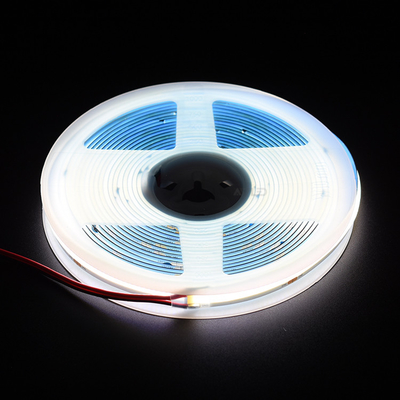

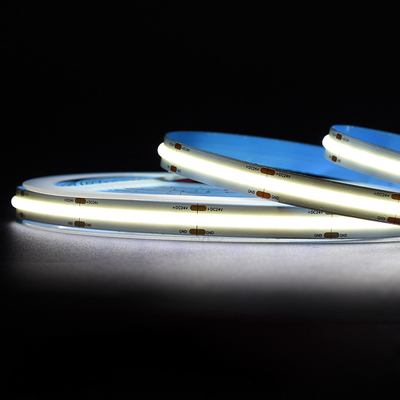

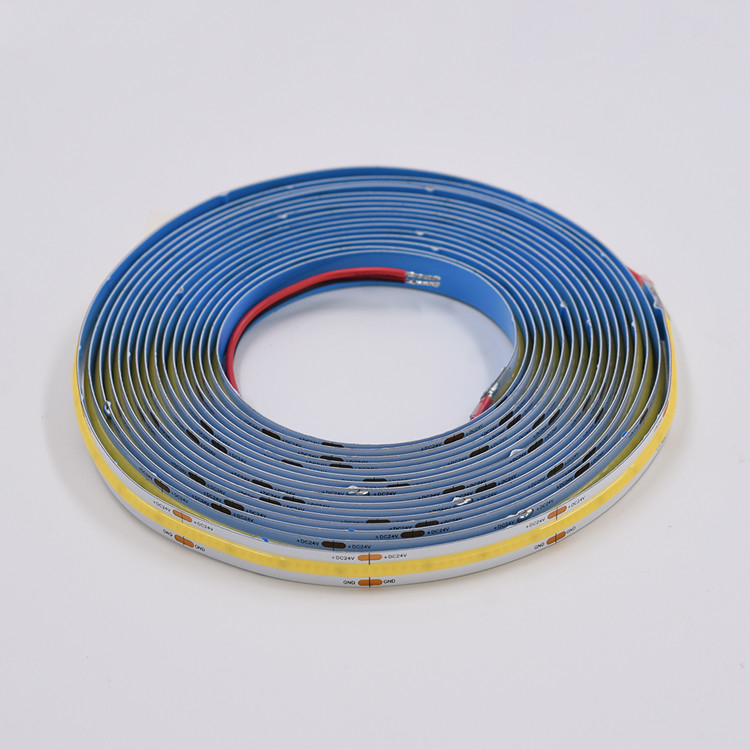

COB LED Strip Light DC 12V 24V 504LEDs/M 16.4ft Flexible Tape Light 3000K 4000K 6500K With CE UL RoHS
1. High Brightness:
COB LED technology allows for a high density of LEDs on a single strip, resulting in increased brightness. The 504 LEDs per meter configuration ensures a powerful and intense lighting output.
2. Uniform illumination:
COB LEDs are designed to provide uniform illumination across their surface. With the high LED density of 504 LEDs per meter, the light emitted is evenly distributed, reducing any visible hotspots or dark areas.
3. Compact Size
The high LED density of 504 LEDs per meter allows for a more compact design. This makes it easier to install the strip in tight spaces or areas where space is limited.
4. Energy Efficiency
COB LED technology is known for its energy efficiency. By using multiple chips on a single board, the 504-LEDs/m strip light can provide bright illumination while consuming less power compared to traditional lighting solutions.
LED Strip Supplier
All our best light strips are of UL, CE, RoHS certified products, guarantee a 3 or 5 years warranty. |
![]() |
Long Lifespan:
LED strip lights have a considerably longer lifespan compared to conventional lighting options. The COB technology, combined with efficient heat dissipation, helps prolong the life of the LEDs, resulting in reduced maintenance and replacement costs.
COB LED Strip Specifications:
Model | ADS-YCOB-504 |
LED type | COB |
LEDs per metre | 504 |
Operating voltage | DC12V |
Watts per metre | 12W |
Color | 2700K/3000K/4000K/6500K |
IP rating | IP20/IP67 |
PCB width | 10mm |
Cut points | 17.86mm |
Beam angle | 180° |
Warranty | 2Years |
Certifications | UL/CE/RoHS/ErP |
Package | 5m(16.4ft) per roll |
Color changeable |
Color jumping or gradient controlled by LED COB tape controller |
COB LED Strip Application:
• Interior lighting
• Under-cabinet lighting
• General illumination
• Entertainment lighting
• Stage lighting
• Task lighting
• Decorative lighting
• Ceiling lighting
COB LED Strip FAQ:
Q: Why more and more people choose COB LED tape?
COB LED tape has many big advantages compared with SMD LED strip, such as perfect linear lighting effect, more flexibility, etc. With advanced craft, it can produce more perfect CRI and color temperature values.
Q: Can you link LED strip lights?
Yes, you can link LED strip lights easily. We can provide lots of LED strip accessory, 10mm LED strip connector, 8mm LED strip connector for 528chips COB LED strip.
Q: Is COB LED strip dimmable ?
Yes, you can dim these dimmable COB LED strip with a simple LED dimmer.
Q: Can you make waterproof COB LED strip?
Yes, we can make waterproof COB LED strip IP65, IP67, IP68 for different lighting applications.
Q: Do COB LED strip need aluminum profile for heat dissipation?
Yes, LED aluminum profile can help COB light strip to dissipate heat better and prolong the life of the COB light strip.
