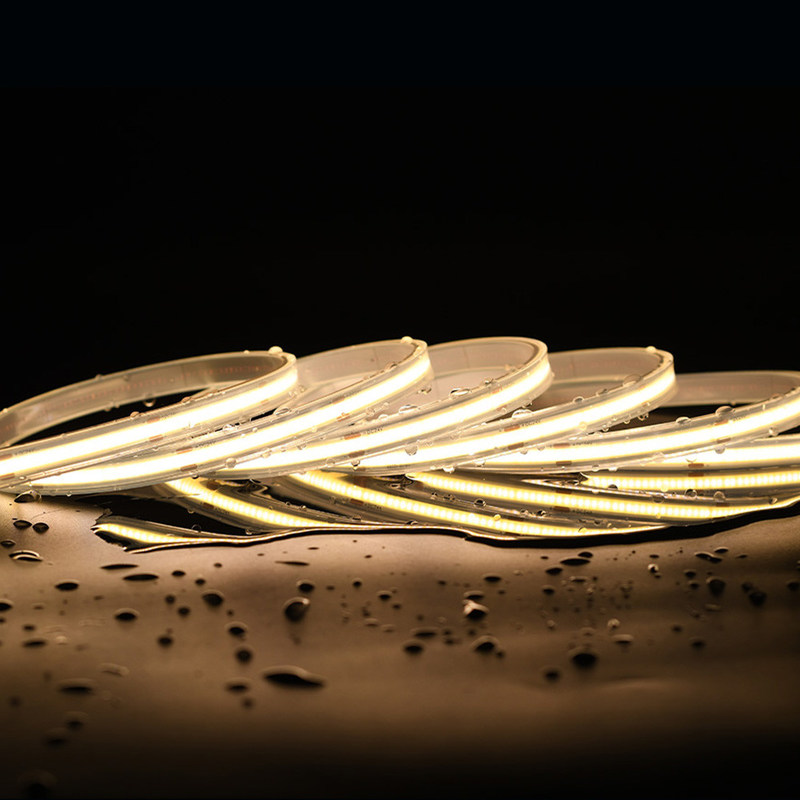

1000LM Constant Current COB Strip Light Bending Freely at 24V with 480 LEDs per Meter
Product Details:
| Place of Origin: | China |
| Brand Name: | ADLED |
| Certification: | UL,CE,ROHS |
| Model Number: | ADS-DCOB-480-12-R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500M |
|---|---|
| Packaging Details: | Static bag |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| LED Type: | COB LED | LED Quantity: | 480Leds |
|---|---|---|---|
| Working Voltage: | DC12V/24V | Power: | 10W/M |
| Color: | 3000K/4000K/6500K | Brightness: | 1000LM |
| Efficiency: | 100LM/W | PCB Width: | 8MM |
| Strip Length: | 5m | IP Rating: | IP20/IP67 |
| Working Temp.: | -20～40 ℃ | ||
| Highlight: | 24V COB Strip Light,480 LEDs COB Strip Light,1000LM COB Strip Light |
||
Product Description
constant current COB strip light, bending freely at 24V with 480 LEDs per meter high-efficiency
The so-called COB LED strip has as many as 480 LEDs per metre, meaning that the LED strip consists of a single unit and you will never suffer from shadow spots in the strip.
Ideal for use in applications for architectural lighting, concealed lighting, cabinet lighting and many other applications. The small size, low voltage and higher light distribution angle (180°) make No Spot COB lighting strip ideal for a wide range of applications.
Dimension
Features
- PCB 8mm PCB with more flexible installation and wider application
- LED Flip-chip process, the chip is directly packaged on the PCB board, which makes the heat dissipation more excellent and the service life is longer.
- Pad Tin plating prevents oxidation and prolongs service life
- Beam angle Luminous diameter can reach 6mm wide,beam angle 180degree
Technical parameters
1. Dotless LED Strip Lights
Hot spot lights of traditional SMD strip light are bad for eyes, COB dotless LED strip emit uniform brightness, shines
in one straight line, it emits perfect lighting even without LED aluminum profile.
2. More Flexible LED Strip
Usually hundreds of chips combines in one meter of COB LED strip, the space between two chips is ultra narrow,
you can bend arbitrarily COB LED strips without any damages.
3. Better Brightness of LED Strip Lights
COB strip light up to 100LM/W is more bright than high density LED tape.
Applications
This makes them ideal for applications requiring smooth and continuous illumination. COB LED strips are known for their high brightness, efficiency, and durability, making them popular for both commercial and residential lighting projects.
About US
Founded in 2013, ADLED is a high-end LED strips and LED modules supplier headquatered in Shenzhen, China.
ADLED has 300 staff working in a 12000sqm dust-free workshop, 15 professional R&D members, 30 experienced QC members to provide customization & quality products.
Our wide range of LED strips and LED modules includes high CRI LED strip, COB LED strip, single color LED strip, RGB LED strip, tunable white LED strip, bendable LED strip, waterproof LED strip, neon LED strip, light bars for LED fabric frame, bar light for LED light box, LED module lights, SMD LED module, LED strip connector, LED strip profile, LED strip controller, and more.
ADLED provide full OEM & ODM services for LED Channel letters, LED Light boxes and linear lighting solutions.
We have big advantages on OEM & ODM service, like low MOQ requests, free or low cost, professional R&D team, design in a quick time, etc.
